WD0573 Forged Alloy Wheel in Matte Bronze
WD0573 is a forged alloy wheel (rim) in Matte Bronze, one of 3 finishes. It is an aftermarket design. It comes in 20 inch: 2 sizes (20x8.5, 20x9.5), 2 bolt patterns (5x112 and 5x114.3), offset ET 30–38 mm and center bore 66.45–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.

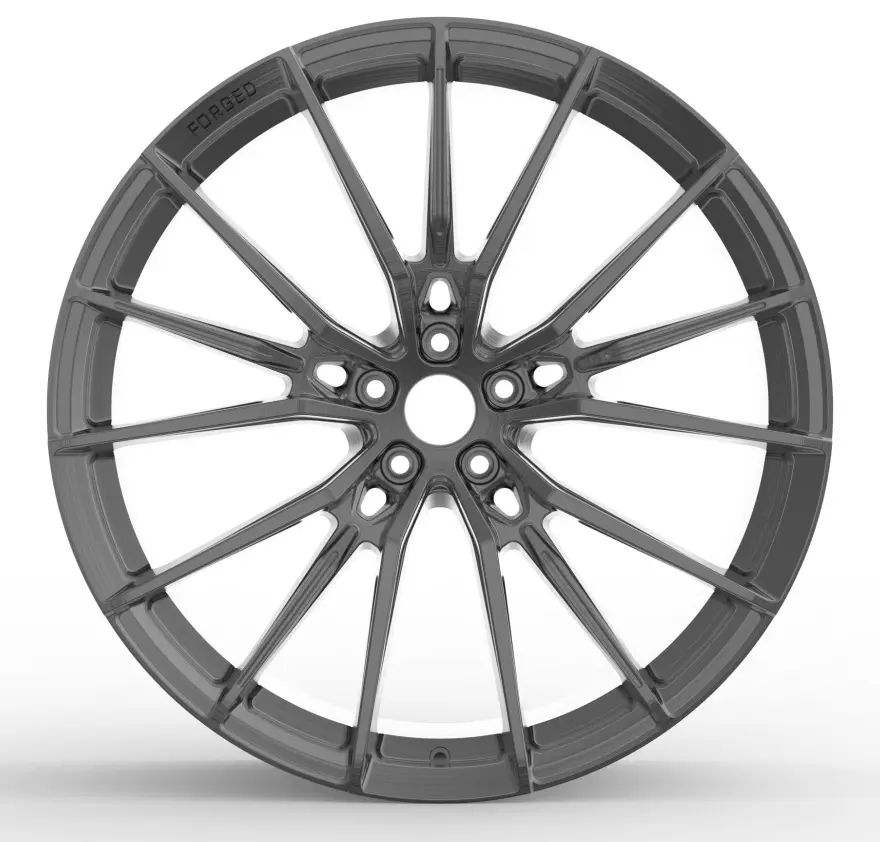

No photo for this finish yet; showing another finish of WD0573.
Finish
Wheel sizes: 20x8.5, 20x9.5
Bolt patterns (PCD): 5x112, 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 20x8.5 | 30 | 5x112 | 66.45 | 15*32.5*60 | 800 | 6 | |
| 20x8.5 | 35 | 5x114.3 | 73.1 | 15*32.5*60 | 800 | 2 | |
| 20x9.5 | 35 | 5x112 | 66.45 | 15*32.5*60 | 800 | 2 | |
| 20x9.5 | 38 | 5x114.3 | 73.1 | 15*32.5*60 | 800 | 2 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x8.5 is a 20 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0573 comes in ET 30–38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–73.1 mm for WD0573. A bore larger than the hub needs centering rings.
