WD0079 Forged Alloy Wheel
WD0079 is a forged alloy wheel (rim) in 3 finishes: Gloss Black Machined Face, Gloss Black (Full Paint) and Matte Black (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20–22 inch: 14 sizes (20x8, 20x9, 20x9.5, 20x10, 20x11, 21x8.5 and more), 2 bolt patterns (5x130 and 5x112), offset ET 19–58 mm and center bore 66.5–71.56 mm. Listed for Porsche (Macan). Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Porsche.

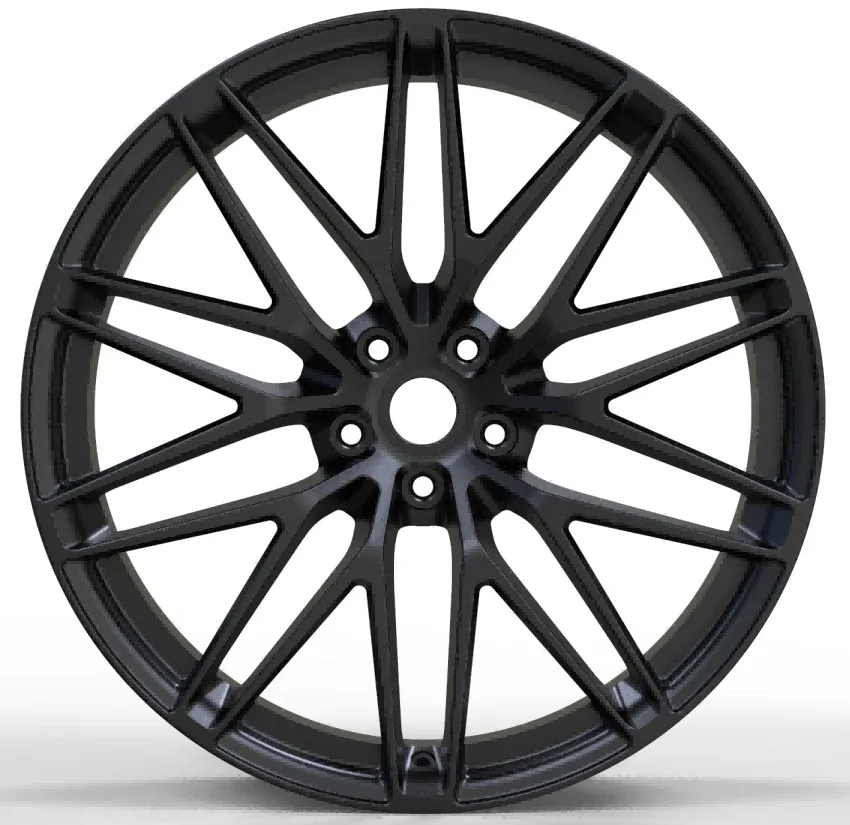

No photo for this finish yet; showing another finish of WD0079.
Finish
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|
| 20x8 | 30 | 5x130 | 66.5 | 15*32*R14 | 950 | 13.3 | Porsche | 8 | |
| 20x9 | 26 | 5x112 | 66.5 | 15*32*R14 | 850 | 12 | Porsche Macan | 6 | |
| 20x9.5 | 46 | 5x130 | 71.56 | 15*32*R14 | 950 | 14.5 | Porsche | 18 | |
| 20x10 | 19 | 5x112 | 66.5 | 15*32*R14 | 850 | 13.3 | Porsche | 6 | |
| 20x10 | 45 | 5x130 | 66.5 | 15*32*R14 | 950 | 13.3 | Porsche | 8 | |
| 20x11 | 58 | 5x130 | 71.56 | 15*32*R14 | 950 | 12.7 | Porsche | 6 | |
| 21x8.5 | 27 | 5x130 | 66.5 | 15*32*R14 | 950 | 13.4 | Porsche | 2 | |
| 21x9 | 26 | 5x112 | 66.5 | 15*32*R14 | 850 | 13.6 | Porsche | 2 | |
| 21x9.5 | 46 | 5x130 | 71.56 | 15*32*R14 | 850 | 13.8 | Porsche | 11 | |
| 21x10 | 19 | 5x112 | 66.5 | 15*32*R14 | 850 | 14.5 | Porsche | 2 | |
| 21x10.5 | 47 | 5x130 | 66.5 | 15*32*R14 | 950 | 14.2 | Porsche | 2 | |
| 21x11 | 58 | 5x130 | 71.56 | 15*32*R14 | 850 | 13.9 | Porsche | 1 | |
| 22x9 | 29 | 5x130 | 66.5 | 15*32*R14 | 950 | 15 | Porsche | 8 | |
| 22x9.5 | 46 | 5x130 | 71.56 | 15*32*R14 | 950 | 14.8 | Porsche | 9 | |
| 22x11 | 47 | 5x130 | 66.5 | 15*32*R14 | 950 | 13.8 | Porsche | 9 | |
| 22x11 | 58 | 5x130 | 71.56 | 15*32*R14 | 950 | 15.1 | Porsche | 14 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x8 is a 20 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0079 comes in ET 19–58; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x130 is 5 bolts on a 130 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.5–71.56 mm for WD0079. A bore larger than the hub needs centering rings.
