WD0097 Forged Alloy Wheel

Name: WD0097 Alloy Wheel
Brand: Sky Flux
SKU: WD0097

WD0097 is a forged alloy wheel (rim) in 2 finishes: Gloss Black Machined Face and Gunmetal Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 18–20 inch: 6 sizes (18x8, 18x9, 19x8.5, 19x9.5, 20x8.5, 20x9.5), 2 bolt patterns (5x112 and 5x120), offset ET 25–38 mm and center bore 66.5–72.56 mm. Listed for BMW. Not sure what PCD, ET and CB mean? Read how to choose wheels.

More wheels for BMW.

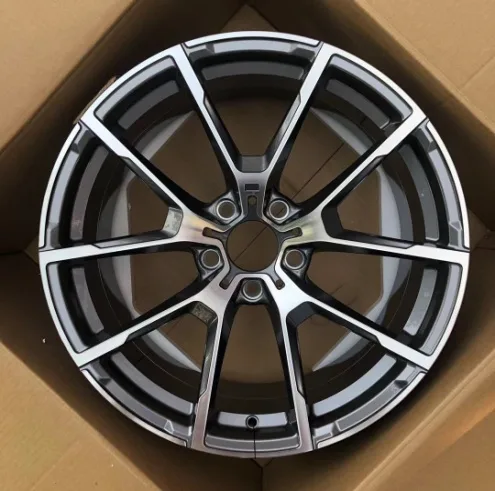

WD0097 alloy wheel rim – Gloss Black Machined Face

WD0097 alloy wheel – Gloss Black Machined Face, photo 2

Finish

Gloss Black Machined Face Gunmetal Machined Face

Wheel sizes: 18x8, 18x9, 19x8.5, 19x9.5, 20x8.5, 20x9.5

Bolt patterns (PCD): 5x112, 5x120

Sizes and specifications of WD0097 in Gloss Black Machined Face
Size (D x J)	Offset (ET)	Bolt pattern (PCD)	Center bore (CB)	Lug hole (mm)	Load (kg)	Weight (kg)	Fits	Stock
18x8	30	5x112	66.5	153260	750	9.9	BMW	1
18x8	30	5x120	72.56	153260	750	9.9	BMW	12
18x9	38	5x112	66.5	153260	750	10.8	BMW	1
19x8.5	30	5x112	66.5	153260	750	11	BMW	2
19x8.5	30	5x120	72.56	153260	750	11	BMW	1
19x9.5	35	5x112	66.5	153260	750	11.2	BMW	6
19x9.5	35	5x120	72.56	153260	750	11.2	BMW	0
20x8.5	25	5x112	66.5	153260	790	11.9	BMW	1
20x9.5	35	5x112	66.5	153260	790	12.3	BMW	3

What these numbers mean

Size (D x J): Diameter in inches, then rim width in inches: 18x8 is a 18 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
Offset (ET): The distance in mm from the wheel's centerline to its mounting face. WD0097 comes in ET 25–38; a lower ET sits the wheel further out.
Bolt pattern (PCD): The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
Center bore (CB): The central hole that sits over the vehicle's hub: 66.5–72.56 mm for WD0097. A bore larger than the hub needs centering rings.
