JX0108 Forged Alloy Wheel
JX0108 is a forged alloy wheel (rim) in 3 finishes: Matte Black (Full Paint), Hyper Black (Full Paint) and Gloss Black (Full Paint). It is an aftermarket design. It comes in 18–20 inch: 4 sizes (18x8, 19x8.5, 20x8.5, 20x9.5), 3 bolt patterns (5x112, 5x120 and 5x108), offset ET 30–38 mm and center bore 62.5–66.5 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.

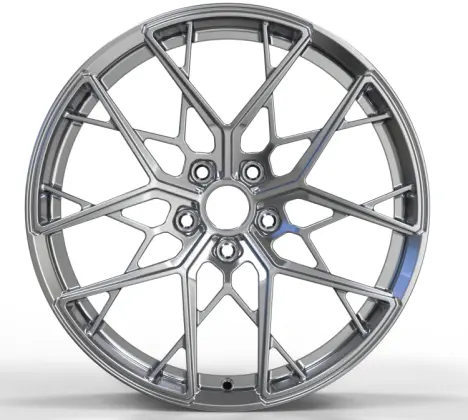

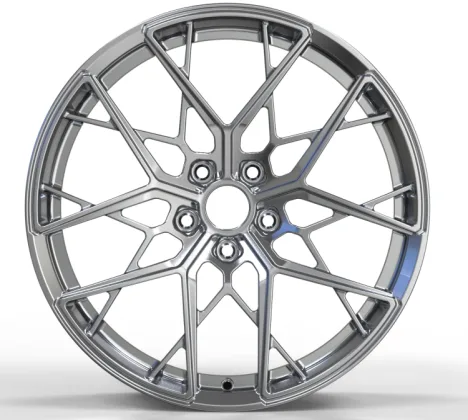

No photo for this finish yet; showing another finish of JX0108.
Finish
Wheel sizes: 18x8, 20x8.5
Bolt patterns (PCD): 5x112, 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 18x8 | 38 | 5x112 | 66.45 | Ball seat | 0 | |
| 20x8.5 | 35 | 5x120 | 62.5 | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x8 is a 18 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. JX0108 comes in ET 30–38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 62.5–66.5 mm for JX0108. A bore larger than the hub needs centering rings.
