WD0558 Forged Alloy Wheel
WD0558 is a forged alloy wheel (rim) in 6 finishes. It is an aftermarket design. It comes in 19–20 inch: 4 sizes (19x8.5, 19x9.5, 20x8.5, 20x9.5), 3 bolt patterns (5x112, 5x120 and 5x114.3), offset ET 30–38 mm and center bore 66.45–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.

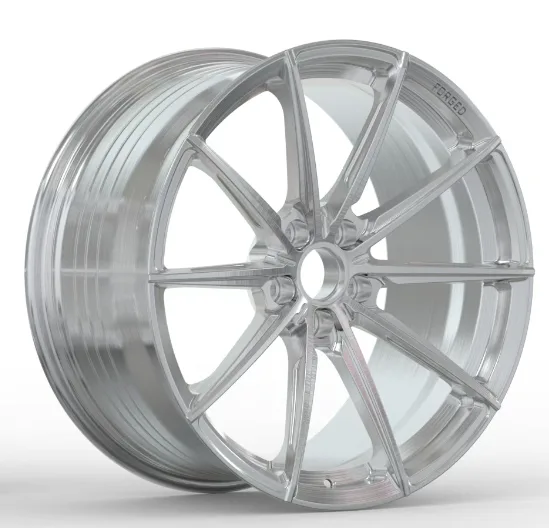

No photo for this finish yet; showing another finish of WD0558.
Finish
Matte BronzeHyper Black (Full Paint)Matte Black (Full Paint)Brushed Aluminium (Natural)Bronze (Full Paint)Matte Champagne Gold
Wheel sizes: 19x8.5, 19x9.5, 20x8.5, 20x9.5
Bolt patterns (PCD): 5x112, 5x120, 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|
| 19x8.5 | 30 | 5x112 | 66.45 | 15*32.5*60 | 750 | 10.17 | 2 | |
| 19x8.5 | 30 | 5x120 | 72.56 | 15*32.5*60 | 850 | 10.38 | ||
| 19x8.5 | 38 | 5x114.3 | 73.1 | 15*32.5*60 | 750 | 10.28 | 4 | |
| 19x9.5 | 35 | 5x112 | 66.45 | 15*32.5*60 | 750 | 10.17 | 2 | |
| 19x9.5 | 35 | 5x120 | 72.56 | 15*32.5*60 | 850 | 10.38 | ||
| 19x9.5 | 38 | 5x114.3 | 73.1 | 15*32.5*60 | 750 | 10 | 0 | |
| 20x8.5 | 30 | 5x112 | 66.45 | 15*32.5*60 | 800 | 11.11 | 6 | |
| 20x8.5 | 30 | 5x120 | 72.56 | 15*32.5*60 | 850 | 11.65 | 4 | |
| 20x8.5 | 35 | 5x114.3 | 73.1 | 15*32.5*60 | 800 | 11.35 | 8 | |
| 20x9.5 | 35 | 5x112 | 66.45 | 15*32.5*60 | 800 | 11.45 | 8 | |
| 20x9.5 | 35 | 5x120 | 72.56 | 15*32.5*60 | 850 | 12.03 | 8 | |
| 20x9.5 | 38 | 5x114.3 | 73.1 | 15*32.5*60 | 800 | 11.1 | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x8.5 is a 19 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0558 comes in ET 30–38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–73.1 mm for WD0558. A bore larger than the hub needs centering rings.
