WD0560 Forged Alloy Wheel

Name: WD0560 Alloy Wheel
Brand: Sky Flux
SKU: WD0560

WD0560 is a forged alloy wheel (rim) in 3 finishes: Matte Bronze, Hyper Black (Full Paint) and Matte Black (Full Paint). It is an aftermarket design. It comes in 19–20 inch: 4 sizes (19x8.5, 19x9.5, 20x8.5, 20x9.5), 2 bolt patterns (5x112 and 5x114.3), offset ET 30–38 mm and center bore 66.45–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.

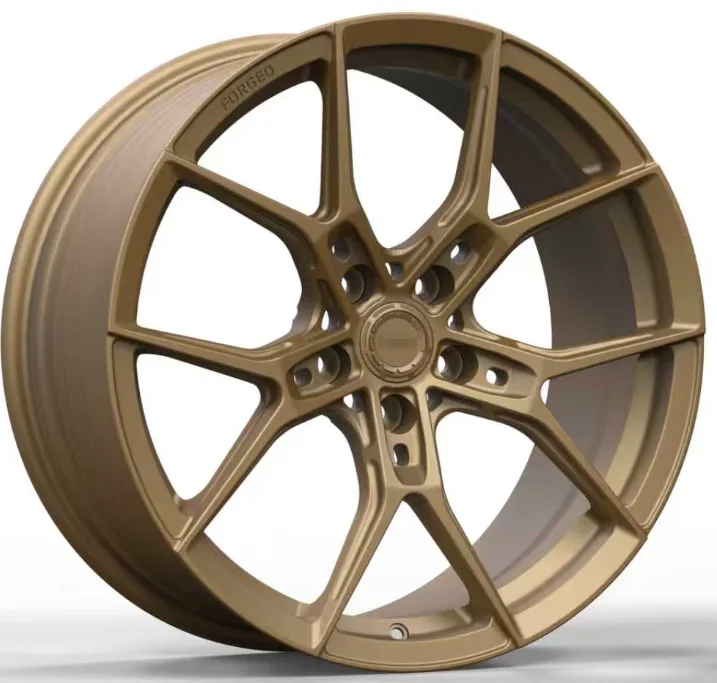

No photo for this finish yet; showing another finish of WD0560.

Finish

Matte Bronze Hyper Black (Full Paint)Matte Black (Full Paint)

Wheel sizes: 19x8.5, 19x9.5, 20x8.5, 20x9.5

Bolt patterns (PCD): 5x112, 5x114.3

Sizes and specifications of WD0560 in Matte Bronze
Size (D x J)	Offset (ET)	Bolt pattern (PCD)	Center bore (CB)	Lug hole (mm)	Load (kg)	Weight (kg)	Stock
19x8.5	30	5x112	66.45	1532.560	750	9.78	0
19x8.5	38	5x114.3	73.1	1532.560	750	9.64	2
19x9.5	35	5x112	66.45	1532.560	750	10.19	0
19x9.5	38	5x114.3	73.1	1532.560	750	10.13	2
20x8.5	30	5x112	66.45	1532.560	800	10.84	2
20x8.5	35	5x114.3	73.1	1532.560	800	10.61	10
20x9.5	35	5x112	66.45	1532.560	800	11.2	2
20x9.5	38	5x114.3	73.1	1532.560	800	11.06	2

What these numbers mean

Size (D x J): Diameter in inches, then rim width in inches: 19x8.5 is a 19 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
Offset (ET): The distance in mm from the wheel's centerline to its mounting face. WD0560 comes in ET 30–38; a lower ET sits the wheel further out.
Bolt pattern (PCD): The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
Center bore (CB): The central hole that sits over the vehicle's hub: 66.45–73.1 mm for WD0560. A bore larger than the hub needs centering rings.
