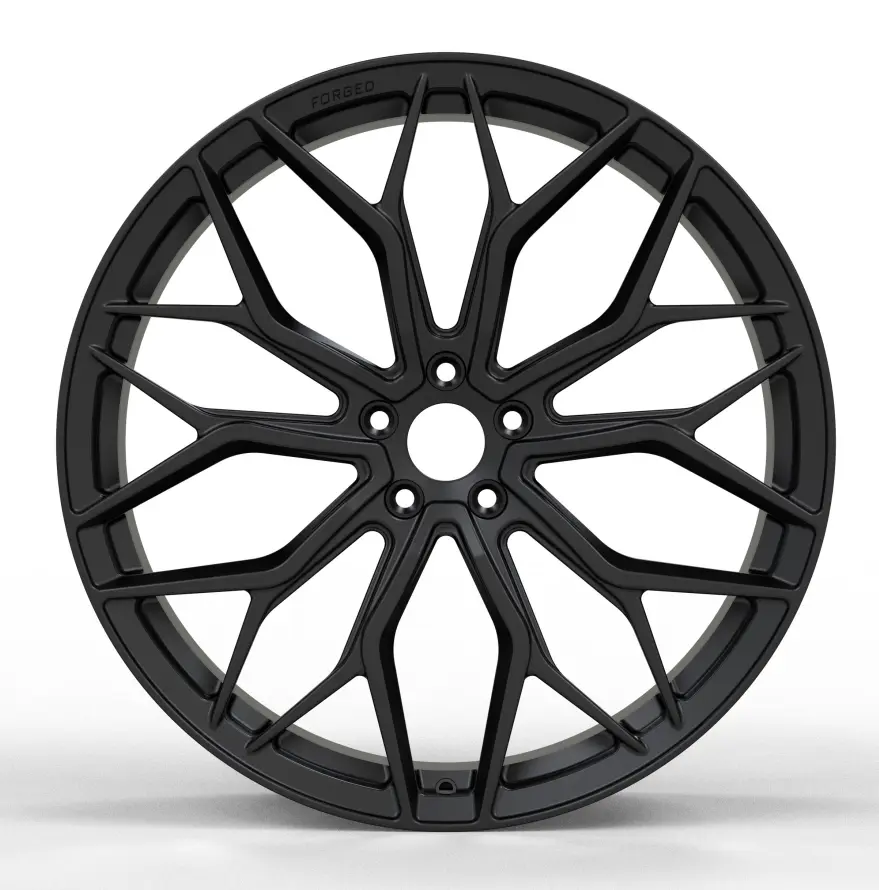

WD0572 Forged Alloy Wheel
WD0572 is a forged alloy wheel (rim) in 2 finishes: Matte Black (Full Paint) and Matte Black. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 21–23 inch: 6 sizes (21x9.5, 21x10.5, 22x9.5, 22x10.5, 23x9.5, 23x10.5), 1 bolt pattern (5x112), offset ET 30–40 mm and center bore 66.5 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 21x9.5, 21x10.5, 22x9.5, 22x10.5, 23x9.5, 23x10.5
Bolt patterns (PCD): 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 21x9.5 | 35 | 5x112 | 66.5 | 15*32.5*60 | 950 | 8 | |
| 21x10.5 | 38 | 5x112 | 66.5 | 15*32.5*60 | 950 | ||
| 22x9.5 | 30 | 5x112 | 66.5 | 15*32.5*60 | 950 | ||
| 22x10.5 | 40 | 5x112 | 66.5 | 15*32.5*60 | 950 | ||
| 23x9.5 | 30 | 5x112 | 66.5 | 15*32.5*60 | 950 | ||
| 23x10.5 | 40 | 5x112 | 66.5 | 15*32.5*60 | 950 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 21x9.5 is a 21 inch wheel with a 9.5 inch wide rim. The J after a width, as in 9.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0572 comes in ET 30–40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.5 mm for WD0572. A bore larger than the hub needs centering rings.
