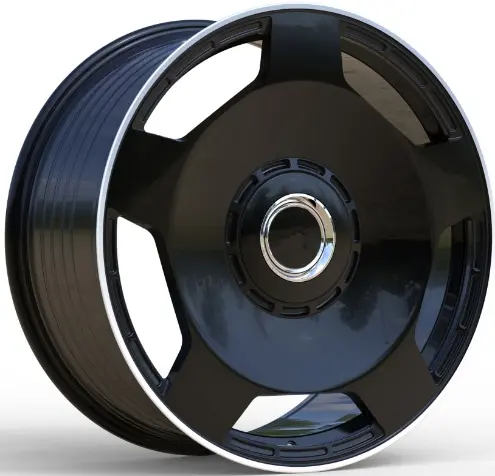

WD399 Cast Alloy Wheel
WD399 is a cast alloy wheel (rim) in 1 finish: Gloss Black Machined Lip. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 22–23 inch: 2 sizes (22x10, 23x10), 1 bolt pattern (5x130), offset ET 36 mm and center bore 84.1 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.
Finish
Wheel sizes: 22x10, 23x10
Bolt patterns (PCD): 5x130
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 22x10 | 36 | 5x130 | 84.1 | Ball seat | Mercedes-Benz | 50+ | |
| 23x10 | 36 | 5x130 | 84.1 | Ball seat | Mercedes-Benz | 1 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 22x10 is a 22 inch wheel with a 10 inch wide rim. The J after a width, as in 10J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD399 comes in ET 36; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x130 is 5 bolts on a 130 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 84.1 mm for WD399. A bore larger than the hub needs centering rings.
