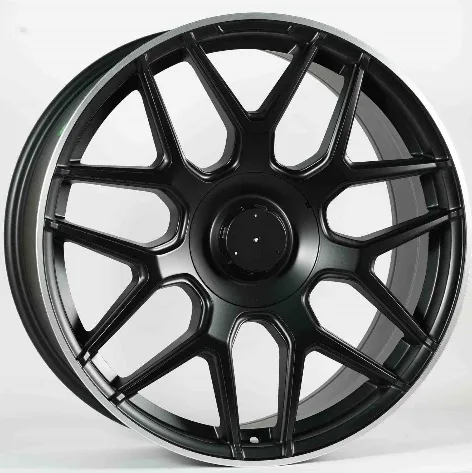

092 Cast Alloy Wheel
092 is a cast alloy wheel (rim) in 1 finish: Satin Black Machined Lip. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20–22 inch: 3 sizes (20x8.5, 21x10, 22x10), 2 bolt patterns (5x130 and 5x112), offset ET 35–36 mm and center bore 66.56–84.1 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.
Finish
Wheel sizes: 20x8.5, 21x10, 22x10
Bolt patterns (PCD): 5x112, 5x130
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 20x8.5 | 35 | 5x112 | 66.56 | Cone seat | Mercedes-Benz | 1 | |
| 20x8.5 | 35 | 5x130 | 84.1 | Cone seat | Mercedes-Benz | 1 | |
| 21x10 | 35 | 5x130 | 84.1 | Cone seat | Mercedes-Benz | 3 | |
| 22x10 | 36 | 5x130 | 84.1 | Cone seat | Mercedes-Benz |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x8.5 is a 20 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. 092 comes in ET 35–36; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x130 is 5 bolts on a 130 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.56–84.1 mm for 092. A bore larger than the hub needs centering rings.
