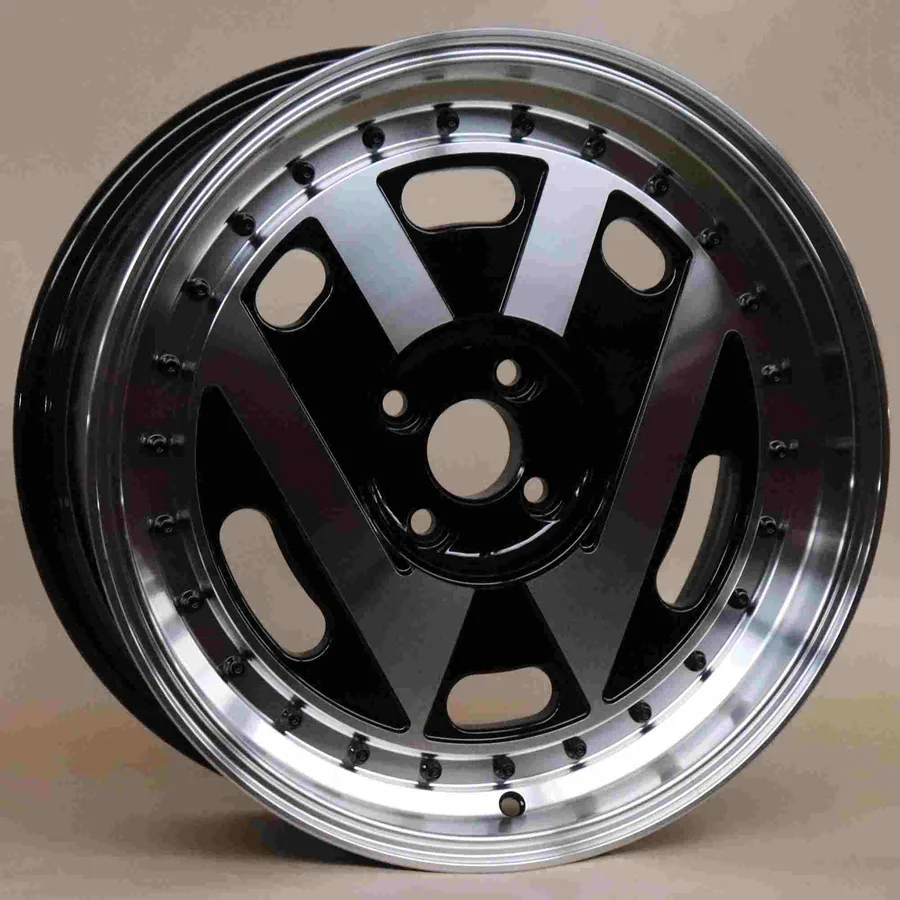

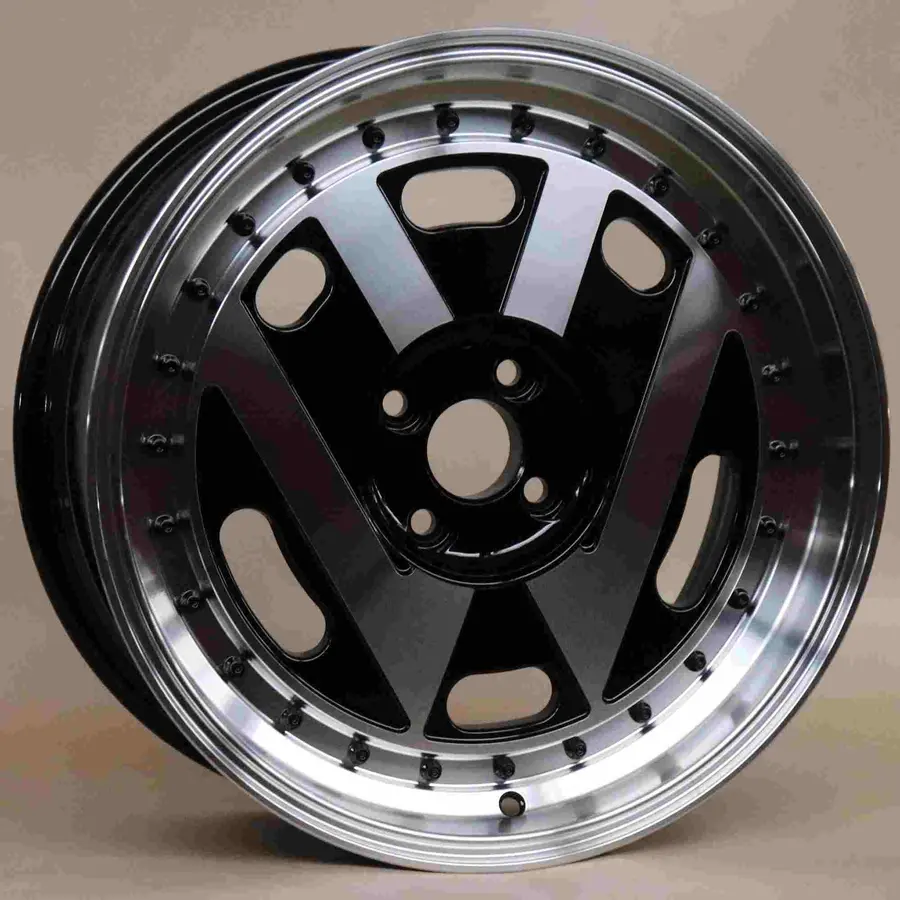

REW022 Cast Alloy Wheel
REW022 is a cast alloy wheel (rim) in 1 finish: Gloss Black Machined Face + Black Rivets. It is an aftermarket design. It comes in 14–17 inch: 6 sizes (14x5.5, 15x6.5, 16x7, 17x7.5, 17x7.6, 17x7.7), 3 bolt patterns (4x100, 5x100 and 5x112), offset ET 20–30 mm and center bore 57.1–66.5 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 14x5.5, 15x6.5, 16x7, 17x7.5, 17x7.6, 17x7.7
Bolt patterns (PCD): 4x100, 5x100, 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 14x5.5 | 30 | 4x100 | 57.1 | Cone seat | 0 | |
| 15x6.5 | 20 | 5x100 | 57.1 | Ball seat | 0 | |
| 15x6.5 | 20 | 5x112 | 66.5 | Ball seat | 0 | |
| 15x6.5 | 30 | 4x100 | 57.1 | Cone seat | 50+ | |
| 16x7 | 20 | 5x100 | 57.1 | Ball seat | 0 | |
| 16x7 | 20 | 5x112 | 57.1 | Ball seat | 0 | |
| 16x7 | 30 | 4x100 | 57.1 | Cone seat | 0 | |
| 17x7.5 | 30 | 4x100 | 57.1 | Cone seat | 0 | |
| 17x7.6 | 30 | 5x100 | 57.1 | Ball seat | 0 | |
| 17x7.7 | 30 | 5x112 | 57.1 | Ball seat | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 14x5.5 is a 14 inch wheel with a 5.5 inch wide rim. The J after a width, as in 5.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. REW022 comes in ET 20–30; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 4x100 is 4 bolts on a 100 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 57.1–66.5 mm for REW022. A bore larger than the hub needs centering rings.
