WD491 Cast Alloy Wheel

Name: WD491 Alloy Wheel
Brand: Sky Flux
SKU: WD491

WD491 is a cast alloy wheel (rim) in 2 finishes: Gloss Black Machined Lip and Matte Black Machined Lip + Red Clear Coat. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20–22 inch: 6 sizes (20x8.5, 20x9.5, 21x10, 21x11, 22x10, 22x11), 2 bolt patterns (5x112 and 5x130), offset ET 35–54 mm and center bore 66.56–84.1 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.

More wheels for Mercedes-Benz.

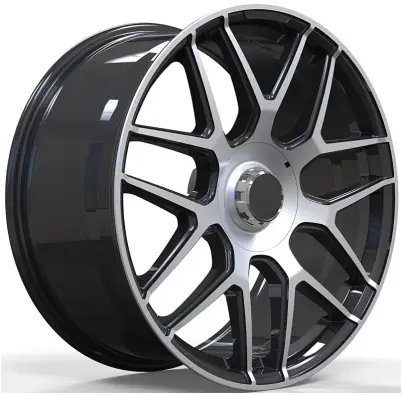

WD491 alloy wheel rim – Gloss Black Machined Lip

No photo for this finish yet; showing another finish of WD491.

Finish

Gloss Black Machined Lip Matte Black Machined Lip + Red Clear Coat

Wheel sizes: 20x8.5, 20x9.5, 21x10, 21x11, 22x10, 22x11

Bolt patterns (PCD): 5x112, 5x130

Sizes and specifications of WD491 in Gloss Black Machined Lip
Size (D x J)	Offset (ET)	Bolt pattern (PCD)	Center bore (CB)	Hole type	Fits	Stock
20x8.5	36	5x112	66.56	Ball seat	Mercedes-Benz
20x9.5	43.5	5x112	66.56	Ball seat	Mercedes-Benz	28
21x10	35	5x130	84.1	Ball seat	Mercedes-Benz
21x10	54	5x112	66.56	Ball seat	Mercedes-Benz	1
21x11	49	5x112	66.56	Ball seat	Mercedes-Benz	19
22x10	36	5x130	84.1	Ball seat	Mercedes-Benz	23
22x10	54	5x112	66.56	Ball seat	Mercedes-Benz	1
22x11	49	5x112	66.56	Ball seat	Mercedes-Benz	13

What these numbers mean

Size (D x J): Diameter in inches, then rim width in inches: 20x8.5 is a 20 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
Offset (ET): The distance in mm from the wheel's centerline to its mounting face. WD491 comes in ET 35–54; a lower ET sits the wheel further out.
Bolt pattern (PCD): The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
Center bore (CB): The central hole that sits over the vehicle's hub: 66.56–84.1 mm for WD491. A bore larger than the hub needs centering rings.
