REW024 Cast Alloy Wheel
REW024 is a cast alloy wheel (rim) in 3 finishes: Gloss Black Machined Lip, Gloss Black Machined Lip + Black Rivets and White (Full Paint). It is an aftermarket design. It comes in 12–18 inch: 6 sizes (12x5, 14x5.5, 15x6.5, 16x7, 17x7.5, 18x8), 4 bolt patterns (8x100x114.3, 10x100x112, 10x108x114.3 and 10x112x114.3), offset ET 20–40 mm and center bore 57.1–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.

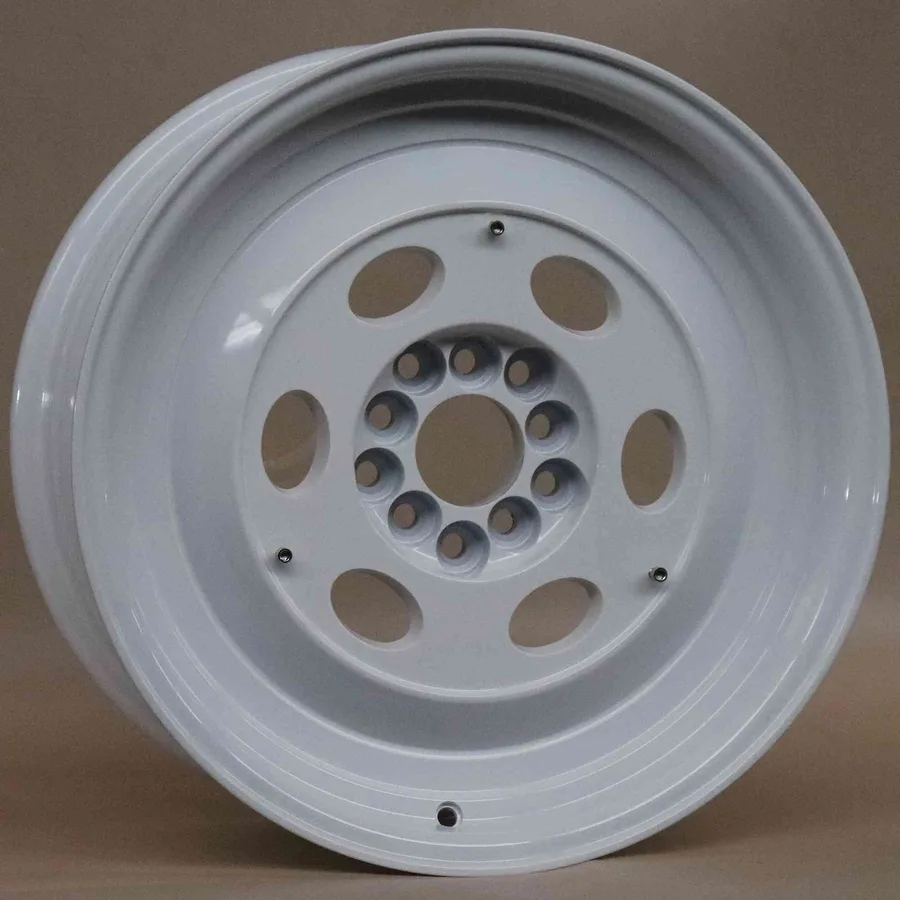

No photo for this finish yet; showing another finish of REW024.
Finish
Wheel sizes: 12x5
Bolt patterns (PCD): 8x100x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 12x5 | 30 | 8x100x114.3 | 73.1 | Cone seat | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 12x5 is a 12 inch wheel with a 5 inch wide rim. The J after a width, as in 5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. REW024 comes in ET 20–40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 8x100x114.3 is 8 bolts on a 100 or 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 57.1–73.1 mm for REW024. A bore larger than the hub needs centering rings.
