RHX1009 Cast Alloy Wheel in Matte Black (Full Paint)
RHX1009 is a cast alloy wheel (rim) in Matte Black (Full Paint), one of 3 finishes. It is an aftermarket design. It comes in 15–16 inch: 2 sizes (15x6.5, 16x6.5), 2 bolt patterns (4x100 and 5x114.3), offset ET 35 mm and center bore 67.1–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.

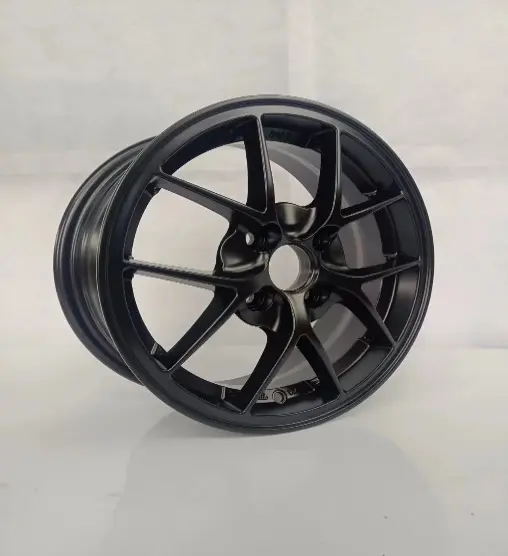

No photo for this finish yet; showing another finish of RHX1009.
Finish
Wheel sizes: 15x6.5, 16x6.5
Bolt patterns (PCD): 5x114.3, 4x100
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 15x6.5 | 35 | 5x114.3 | 73.1 | Cone seat | 0 | |
| 16x6.5 | 35 | 4x100 | 67.1 | Cone seat | 33 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 15x6.5 is a 15 inch wheel with a 6.5 inch wide rim. The J after a width, as in 6.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. RHX1009 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 4x100 is 4 bolts on a 100 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 67.1–73.1 mm for RHX1009. A bore larger than the hub needs centering rings.
