FBX042 Cast Alloy Wheel

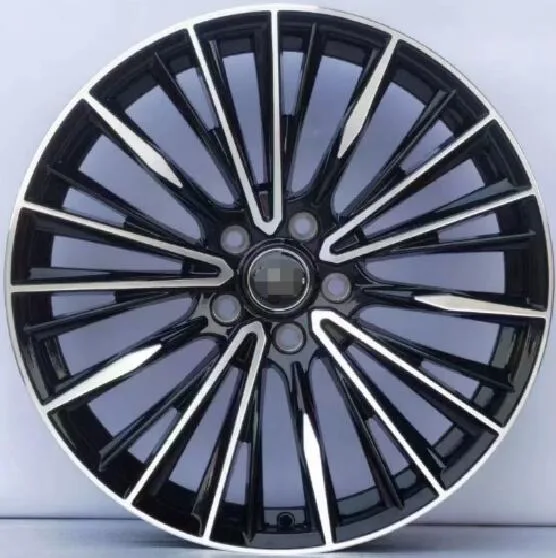

FBX042 is a cast alloy wheel (rim) in 1 finish: Gloss Black Machined Face. It is an aftermarket design. It comes in 16 inch: 1 size (16x7), 2 bolt patterns (4x100 and 5x114.3), offset ET 35 mm and center bore 67.1–73.1 mm. Listed for Toyota. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Toyota.
Finish
Wheel sizes: 16x7
Bolt patterns (PCD): 4x100, 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 16x7 | 35 | 4x100 | 67.1 | Cone seat | Toyota | 0 | |
| 16x7 | 35 | 5x114.3 | 73.1 | Cone seat | Toyota | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 16x7 is a 16 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. FBX042 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 4x100 is 4 bolts on a 100 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 67.1–73.1 mm for FBX042. A bore larger than the hub needs centering rings.
