WD011 Cast Alloy Wheel

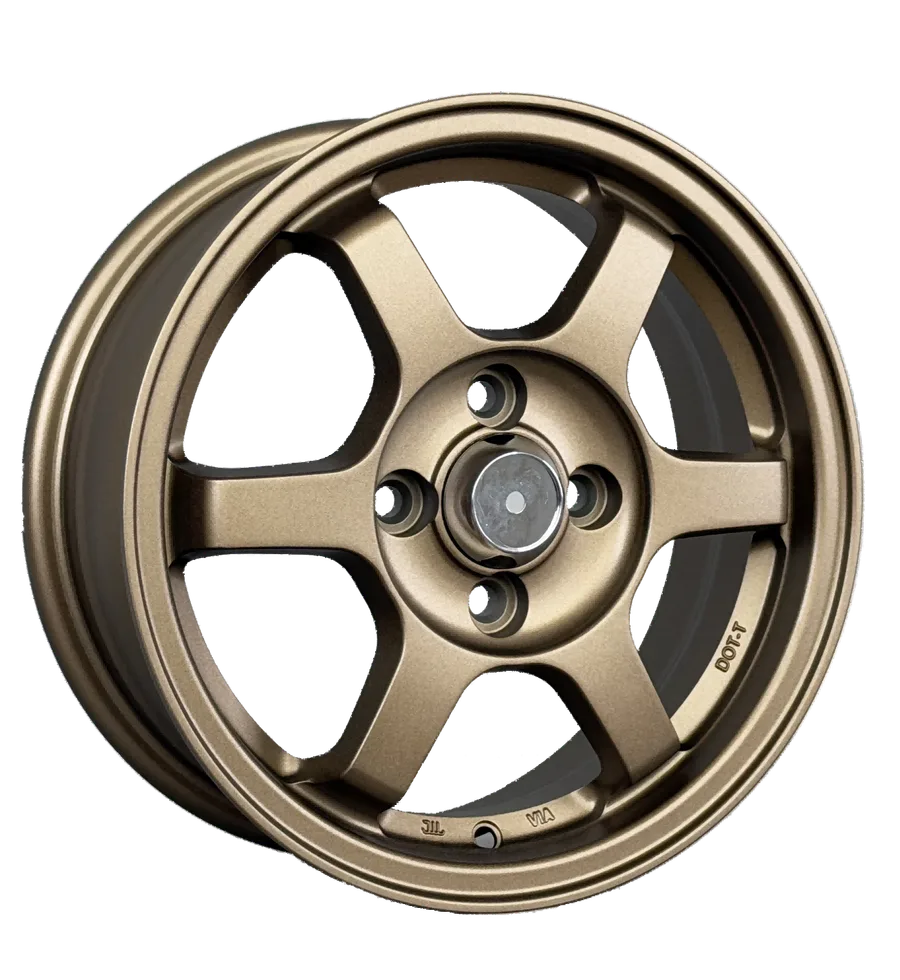

WD011 is a cast alloy wheel (rim) in 3 finishes: Matte Bronze (Full Paint), Matte Black (Full Paint) and Frosted Bronze Machined Lip. It is an aftermarket design. It comes in 14–15 inch: 2 sizes (14x5.5, 15x6.5), 1 bolt pattern (4x100), offset ET 33 mm and center bore 67.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 14x5.5
Bolt patterns (PCD): 4x100
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 14x5.5 | 33 | 4x100 | 67.1 | 34 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 14x5.5 is a 14 inch wheel with a 5.5 inch wide rim. The J after a width, as in 5.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD011 comes in ET 33; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 4x100 is 4 bolts on a 100 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 67.1 mm for WD011. A bore larger than the hub needs centering rings.
