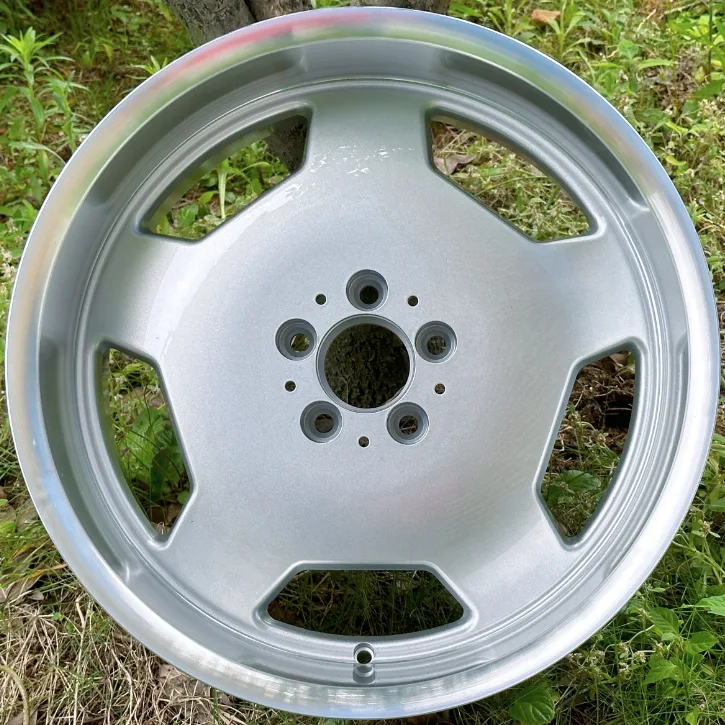

WD538 Cast Alloy Wheel
WD538 is a cast alloy wheel (rim) in 1 finish: Silver Machined Lip. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–19 inch: 5 sizes (17x8, 18x8, 18x9, 19x8.5, 19x9.5), 1 bolt pattern (5x112), offset ET 35 mm and center bore 66.56–66.6 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.
Finish
Wheel sizes: 17x8, 18x8, 18x9, 19x8.5, 19x9.5
Bolt patterns (PCD): 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 17x8 | 35 | 5x112 | 66.56 | Ball seat | Mercedes-Benz | 2 | |
| 18x8 | 35 | 5x112 | 66.56 | Ball seat | Mercedes-Benz | ||
| 18x9 | 35 | 5x112 | 66.56 | Ball seat | Mercedes-Benz | 17 | |
| 19x8.5 | 35 | 5x112 | 66.6 | Ball seat | Mercedes-Benz | 2 | |
| 19x9.5 | 35 | 5x112 | 66.6 | Ball seat | Mercedes-Benz | 5 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x8 is a 17 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD538 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.56–66.6 mm for WD538. A bore larger than the hub needs centering rings.
