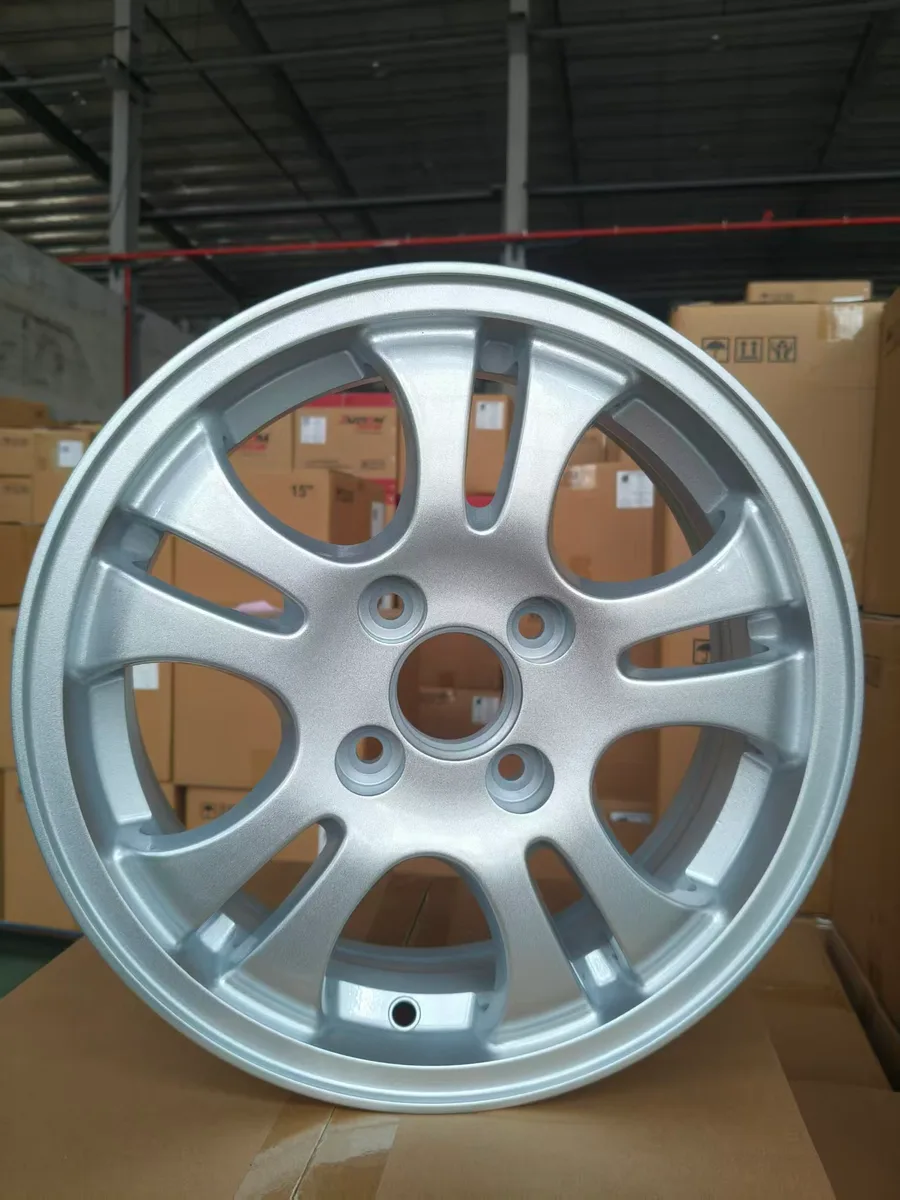

4040 Cast Alloy Wheel
4040 is a cast alloy wheel (rim) in 1 finish: Silver (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 14 inch: 1 size (14x5), 1 bolt pattern (4x100), offset ET 35 mm and center bore 54.1 mm. Listed for Chery. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 14x5
Bolt patterns (PCD): 4x100
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 14x5 | 35 | 4x100 | 54.1 | Cone seat | Chery | 6 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 14x5 is a 14 inch wheel with a 5 inch wide rim. The J after a width, as in 5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. 4040 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 4x100 is 4 bolts on a 100 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 54.1 mm for 4040. A bore larger than the hub needs centering rings.
