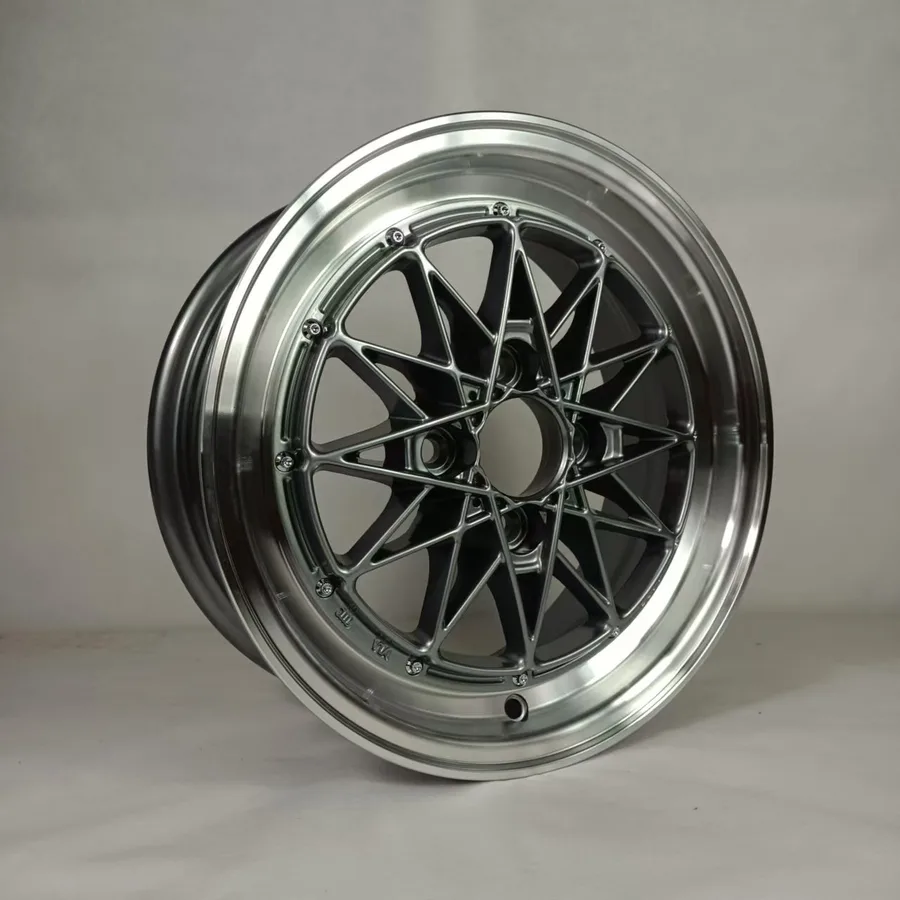

RHD1013 Cast Alloy Wheel
RHD1013 is a cast alloy wheel (rim) in 4 finishes: Silver Machined Lip, Gunmetal Machined Lip + Rivets, White Machined Lip + Rivets and Gloss Black Machined Lip + Rivets. It is an aftermarket design. It comes in 14 inch: 1 size (14x5.5), 1 bolt pattern (4x100), offset ET 31 mm and center bore 73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
No photo for this finish yet; showing another finish of RHD1013.
Finish
Silver Machined LipGunmetal Machined Lip + RivetsWhite Machined Lip + RivetsGloss Black Machined Lip + Rivets
Wheel sizes: 14x5.5
Bolt patterns (PCD): 4x100
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 14x5.5 | 31 | 4x100 | 73.1 | Cone seat | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 14x5.5 is a 14 inch wheel with a 5.5 inch wide rim. The J after a width, as in 5.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. RHD1013 comes in ET 31; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 4x100 is 4 bolts on a 100 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 73.1 mm for RHD1013. A bore larger than the hub needs centering rings.
Fits the same bolt pattern and size
Same PCD, wheel diameter and a compatible center bore.
Similar finish and range
Same collection, with a matching finish or vehicle brand.
Similar design
Wheels that look alike, from the same collection. Check the bolt pattern before you order.
