WD274 Cast Alloy Wheel

Name: WD274 Alloy Wheel
Brand: Sky Flux
SKU: WD274

WD274 is a cast alloy wheel (rim) in 3 finishes: Matte Black Machined Lip, Gunmetal (Full Paint) and Gloss Black (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–20 inch: 4 sizes (17x9, 18x7.5, 18x9, 20x9), 6 bolt patterns (6x135, 6x139.7, 5x114.3, 5x120, 5x127 and 6x114.3), offset ET -12–40.5 mm and center bore 64.1–110.1 mm. Listed for Honda. Feature: anti-slip groove. Not sure what PCD, ET and CB mean? Read how to choose wheels.

More wheels for Honda.

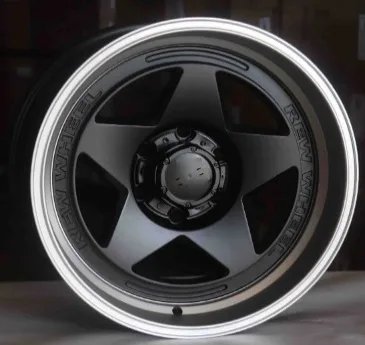

WD274 alloy wheel rim – Matte Black Machined Lip

WD274 alloy wheel – Gloss Black (Full Paint), photo 1

WD274 alloy wheel – Gunmetal (Full Paint), photo 2

WD274 alloy wheel – Matte Black Machined Lip, photo 3

Finish

Matte Black Machined Lip Gunmetal (Full Paint)Gloss Black (Full Paint)

Wheel sizes: 17x9, 18x9, 20x9

Bolt patterns (PCD): 6x135, 5x127, 6x114.3, 6x139.7

Sizes and specifications of WD274 in Matte Black Machined Lip
Size (D x J)	Offset (ET)	Bolt pattern (PCD)	Center bore (CB)	Hole type	Fits	Stock
17x9	0	6x135	87.1	Cone seat	Anti-slip groove	22
18x9	-12	5x127	71.5	Cone seat	Anti-slip groove	33
18x9	0	6x114.3	66.1	Cone seat	Anti-slip groove	3
18x9	0	6x135	87.1	Cone seat	Anti-slip groove	50+
20x9	0	6x139.7	110.1	Cone seat	Anti-slip groove	50+

What these numbers mean

Size (D x J): Diameter in inches, then rim width in inches: 17x9 is a 17 inch wheel with a 9 inch wide rim. The J after a width, as in 9J, names the rim flange profile.
Offset (ET): The distance in mm from the wheel's centerline to its mounting face. WD274 comes in ET -12–40.5; a lower ET sits the wheel further out.
Bolt pattern (PCD): The number of bolts and the diameter in mm of the circle they sit on: 6x135 is 6 bolts on a 135 mm circle. It must match the vehicle.
Center bore (CB): The central hole that sits over the vehicle's hub: 64.1–110.1 mm for WD274. A bore larger than the hub needs centering rings.
