WD162 Cast Alloy Wheel

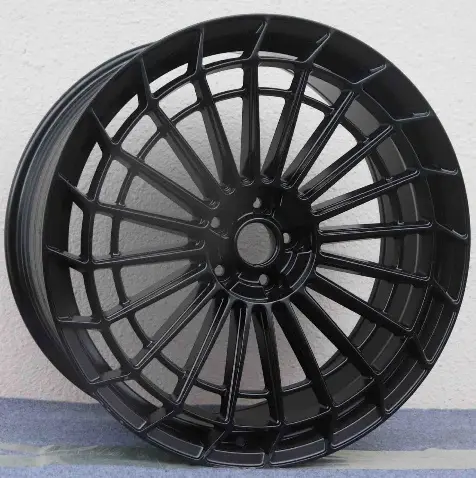

WD162 is a cast alloy wheel (rim) in 1 finish: Matte Black (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20–22 inch: 6 sizes (20x8.5, 20x9.5, 21x9, 21x9.5, 22x9, 22x9.5), 1 bolt pattern (5x112), offset ET 30–45 mm and center bore 66.56 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.
Finish
Wheel sizes: 20x8.5, 20x9.5, 21x9, 21x9.5, 22x9, 22x9.5
Bolt patterns (PCD): 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 20x8.5 | 38 | 5x112 | 66.56 | Ball seat | Mercedes-Benz | ||
| 20x9.5 | 43 | 5x112 | 66.56 | Ball seat | Mercedes-Benz | 48 | |
| 21x9 | 30 | 5x112 | 66.56 | Ball seat | Mercedes-Benz | 21 | |
| 21x9.5 | 41.5 | 5x112 | 66.56 | Ball seat | Mercedes-Benz | 50+ | |
| 22x9 | 40 | 5x112 | 66.56 | Ball seat | Mercedes-Benz | 14 | |
| 22x9.5 | 45 | 5x112 | 66.56 | Ball seat | Mercedes-Benz | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x8.5 is a 20 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD162 comes in ET 30–45; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.56 mm for WD162. A bore larger than the hub needs centering rings.
