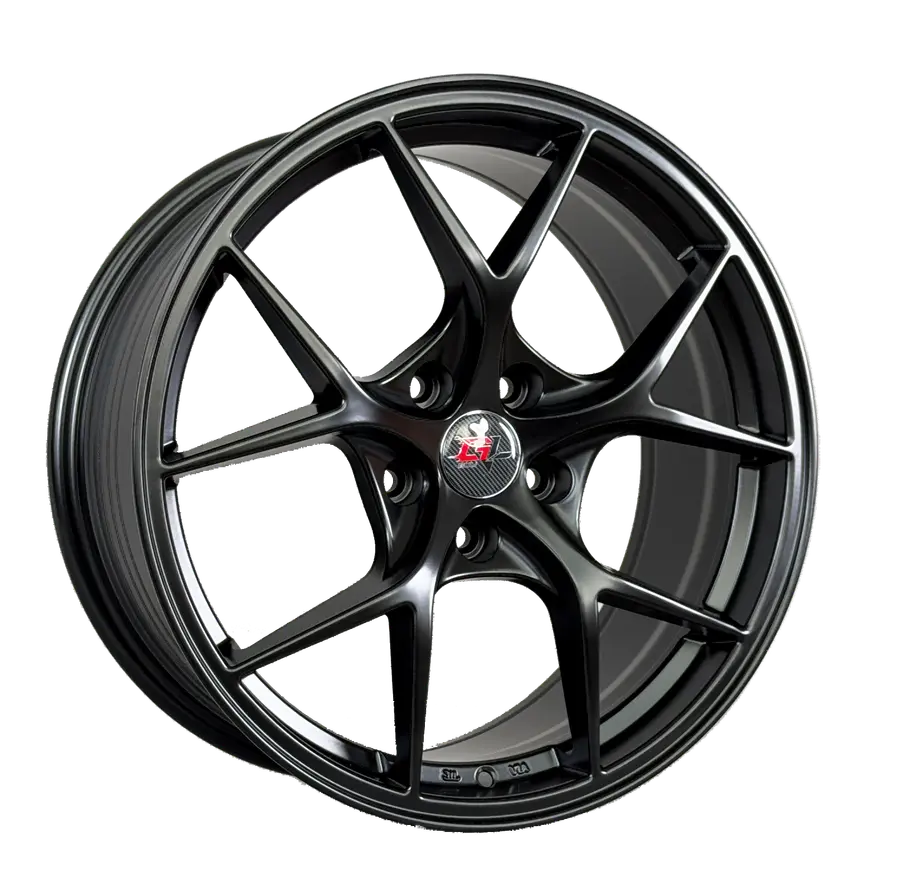

WD424 Cast Alloy Wheel in Matte Black (Full Paint)
WD424 is a cast alloy wheel (rim) in Matte Black (Full Paint), one of 3 finishes. It is an aftermarket design. It comes in 14–19 inch: 6 sizes (14x5.5, 15x6.5, 16x7, 17x7.5, 18x8, 19x8.5), 6 bolt patterns (5x114.3, 4x100, 5x108, 5x112, 5x100 and 5x120), offset ET 35 mm and center bore 57.1–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 14x5.5, 15x6.5, 16x7, 17x7.5, 18x8, 19x8.5
Bolt patterns (PCD): 4x100, 5x114.3, 5x100, 5x108, 5x112, 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 14x5.5 | 35 | 4x100 | 67.1 | 26 | |
| 15x6.5 | 35 | 4x100 | 67.1 | 5 | |
| 15x6.5 | 35 | 5x114.3 | 73.1 | 32 | |
| 16x7 | 35 | 4x100 | 67.1 | 2 | |
| 16x7 | 35 | 5x100 | 57.1 | 18 | |
| 16x7 | 35 | 5x114.3 | 73.1 | 50+ | |
| 17x7.5 | 35 | 5x108 | 73.1 | 28 | |
| 17x7.5 | 35 | 5x112 | 66.45 | 50+ | |
| 17x7.5 | 35 | 5x114.3 | 73.1 | 50+ | |
| 18x8 | 35 | 5x108 | 73.1 | 6 | |
| 18x8 | 35 | 5x114.3 | 73.1 | 50+ | |
| 18x8 | 35 | 5x120 | 72.56 | 2 | |
| 19x8.5 | 35 | 5x108 | 73.1 | 2 | |
| 19x8.5 | 35 | 5x112 | 66.45 | 1 | |
| 19x8.5 | 35 | 5x114.3 | 73.1 | 46 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 14x5.5 is a 14 inch wheel with a 5.5 inch wide rim. The J after a width, as in 5.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD424 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 57.1–73.1 mm for WD424. A bore larger than the hub needs centering rings.
