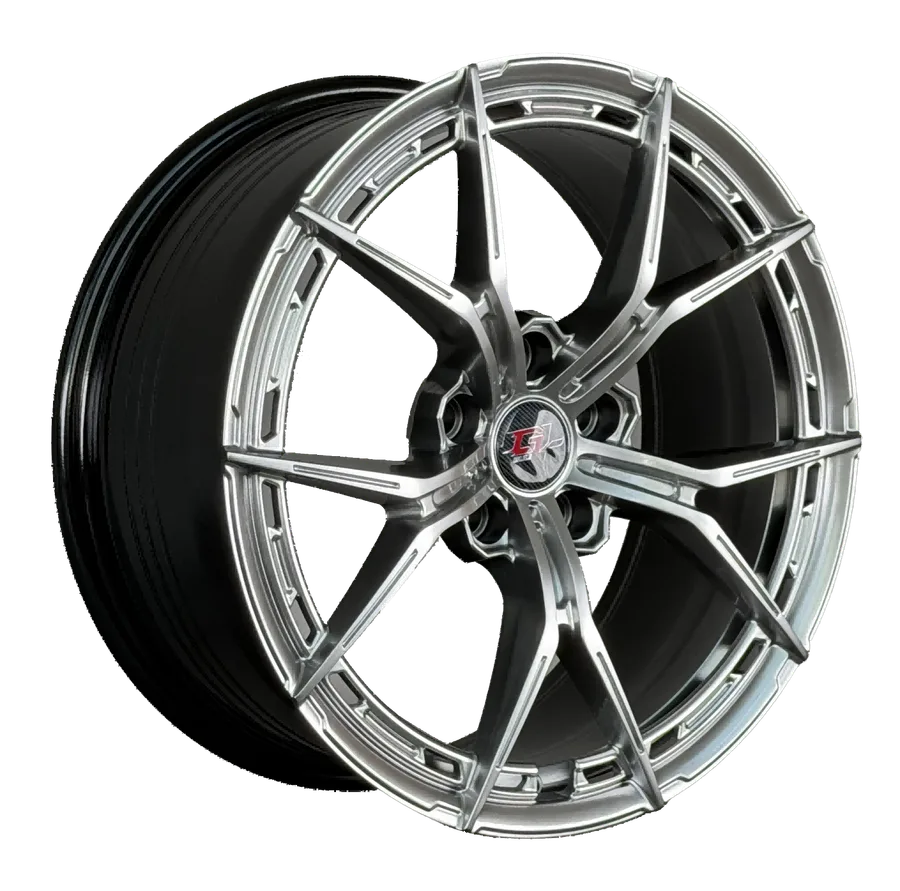

WD426 Cast Alloy Wheel
WD426 is a cast alloy wheel (rim) in 4 finishes: Hyper Black (Full Paint), Gloss Black (Full Paint), Matte Bronze (Full Paint) and Matte Black (Full Paint). It is an aftermarket design. It comes in 17–20 inch: 4 sizes (17x7.5, 18x8, 19x8.5, 20x8.5), 4 bolt patterns (5x114.3, 5x112, 5x108 and 5x120), offset ET 35 mm and center bore 66.45–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 17x7.5, 18x8, 19x8.5, 20x8.5
Bolt patterns (PCD): 5x108, 5x112, 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 17x7.5 | 35 | 5x108 | 73.1 | 41 | |
| 17x7.5 | 35 | 5x112 | 66.45 | 38 | |
| 17x7.5 | 35 | 5x114.3 | 73.1 | 15 | |
| 18x8 | 35 | 5x108 | 73.1 | 31 | |
| 18x8 | 35 | 5x112 | 66.45 | 50+ | |
| 18x8 | 35 | 5x114.3 | 73.1 | 10 | |
| 19x8.5 | 35 | 5x112 | 66.45 | 6 | |
| 19x8.5 | 35 | 5x114.3 | 73.1 | 38 | |
| 20x8.5 | 35 | 5x112 | 66.45 | 42 | |
| 20x8.5 | 35 | 5x114.3 | 73.1 | 23 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7.5 is a 17 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD426 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–73.1 mm for WD426. A bore larger than the hub needs centering rings.
