WD468 Cast Alloy Wheel

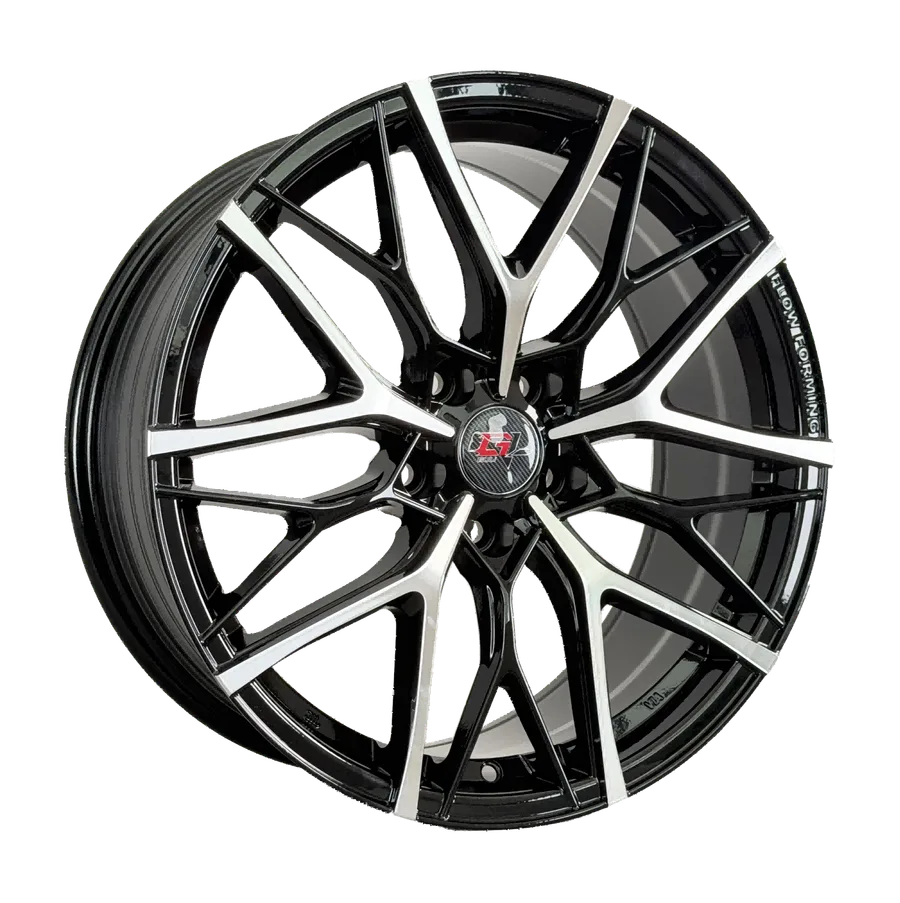

WD468 is a cast alloy wheel (rim) in 3 finishes: Gloss Black Machined Face, Matte Bronze (Full Paint) and Hyper Black (Full Paint). It is an aftermarket design. It comes in 17–18 inch: 2 sizes (17x7.5, 18x8), 4 bolt patterns (5x112, 5x114.3, 5x108 and 5x120), offset ET 35 mm and center bore 66.45–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 17x7.5, 18x8
Bolt patterns (PCD): 5x108, 5x112, 5x114.3, 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 17x7.5 | 35 | 5x108 | 73.1 | 42 | |
| 17x7.5 | 35 | 5x112 | 66.45 | 16 | |
| 17x7.5 | 35 | 5x114.3 | 73.1 | 44 | |
| 18x8 | 35 | 5x112 | 66.45 | 28 | |
| 18x8 | 35 | 5x114.3 | 73.1 | 0 | |
| 18x8 | 35 | 5x120 | 72.56 | 39 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7.5 is a 17 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD468 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–73.1 mm for WD468. A bore larger than the hub needs centering rings.
