WD039 Cast Alloy Wheel

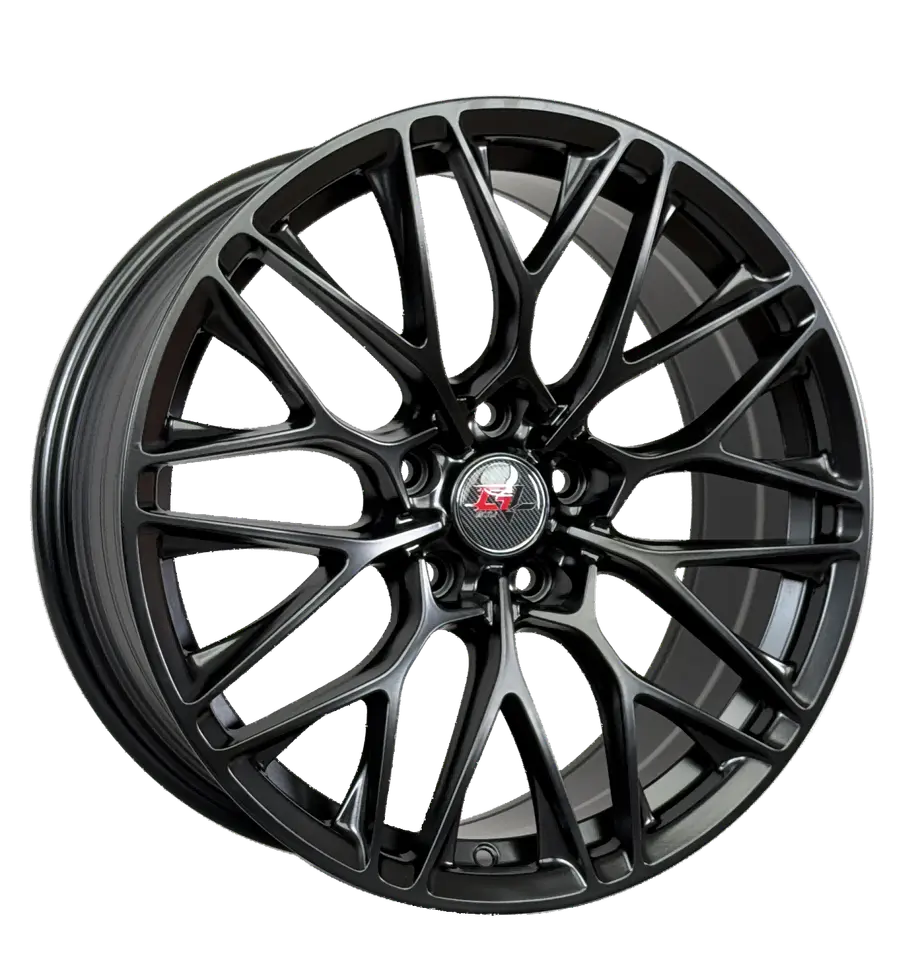

WD039 is a cast alloy wheel (rim) in 3 finishes: Matte Black (Full Paint), Hyper Black (Full Paint) and Matte Bronze (Full Paint). It is an aftermarket design. It comes in 15–20 inch: 4 sizes (15x6.5, 18x8, 19x8.5, 20x8.5), 6 bolt patterns (5x114.3, 5x112, 5x108, 5x120, 4x100 and 5x100), offset ET 35 mm and center bore 66.45–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 15x6.5, 18x8, 19x8.5, 20x8.5
Bolt patterns (PCD): 4x100, 5x100, 5x114.3, 5x108, 5x120, 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 15x6.5 | 35 | 4x100 | 67.1 | 3 | |
| 15x6.5 | 35 | 5x100 | 73.1 | 13 | |
| 15x6.5 | 35 | 5x114.3 | 73.1 | 50+ | |
| 18x8 | 35 | 5x108 | 73.1 | 34 | |
| 18x8 | 35 | 5x114.3 | 73.1 | 24 | |
| 18x8 | 35 | 5x120 | 73.1 | 3 | |
| 19x8.5 | 35 | 5x112 | 66.45 | 12 | |
| 19x8.5 | 35 | 5x114.3 | 73.1 | 3 | |
| 19x8.5 | 35 | 5x120 | 73.1 | 2 | |
| 20x8.5 | 35 | 5x112 | 66.45 | 7 | |
| 20x8.5 | 35 | 5x114.3 | 73.1 | 2 | |
| 20x8.5 | 35 | 5x120 | 72.56 | 2 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 15x6.5 is a 15 inch wheel with a 6.5 inch wide rim. The J after a width, as in 6.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD039 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–73.1 mm for WD039. A bore larger than the hub needs centering rings.
