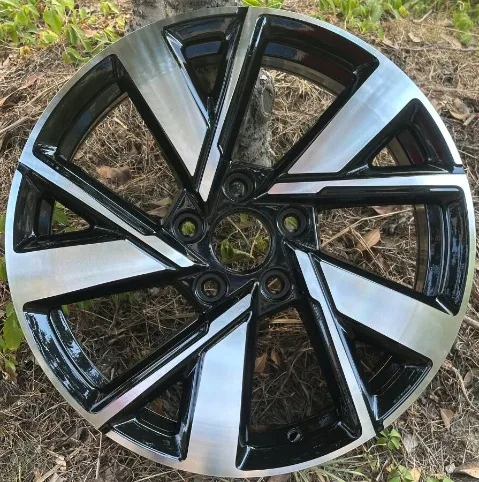

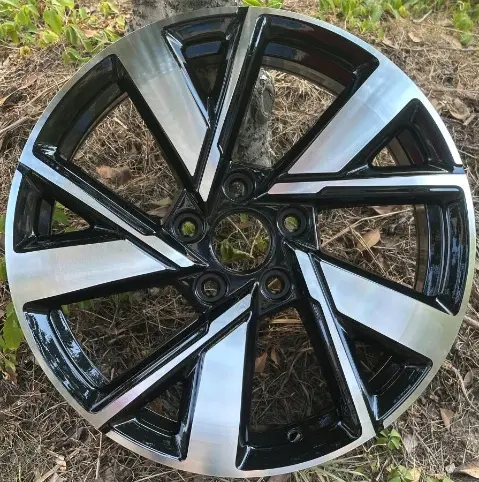

WD328 Cast Alloy Wheel
WD328 is a cast alloy wheel (rim) in 1 finish: Gloss Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 18 inch: 1 size (18x6.5), 1 bolt pattern (5x120), offset ET 40 mm and center bore 64.1 mm. Listed for BYD (Song). Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for BYD.
Finish
Wheel sizes: 18x6.5
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 18x6.5 | 40 | 5x120 | 64.1 | Cone seat | BYD Song |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x6.5 is a 18 inch wheel with a 6.5 inch wide rim. The J after a width, as in 6.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD328 comes in ET 40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 64.1 mm for WD328. A bore larger than the hub needs centering rings.
