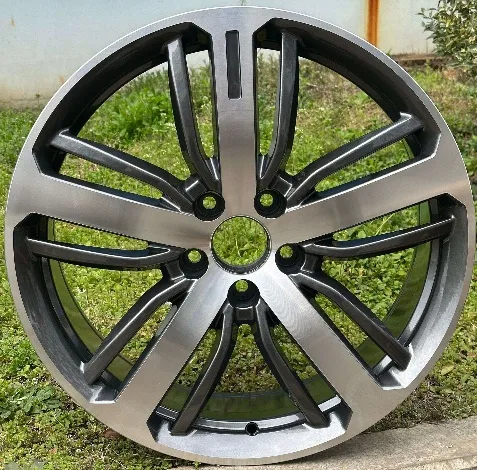

WD289 Cast Alloy Wheel
WD289 is a cast alloy wheel (rim) in 1 finish: Gunmetal Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 19 inch: 1 size (19x7.5), 1 bolt pattern (5x114.3), offset ET 40 mm and center bore 64.1 mm. Listed for Haval. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Haval.
Finish
Wheel sizes: 19x7.5
Bolt patterns (PCD): 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 19x7.5 | 40 | 5x114.3 | 64.1 | Cone seat | Haval | 39 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x7.5 is a 19 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD289 comes in ET 40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 64.1 mm for WD289. A bore larger than the hub needs centering rings.
