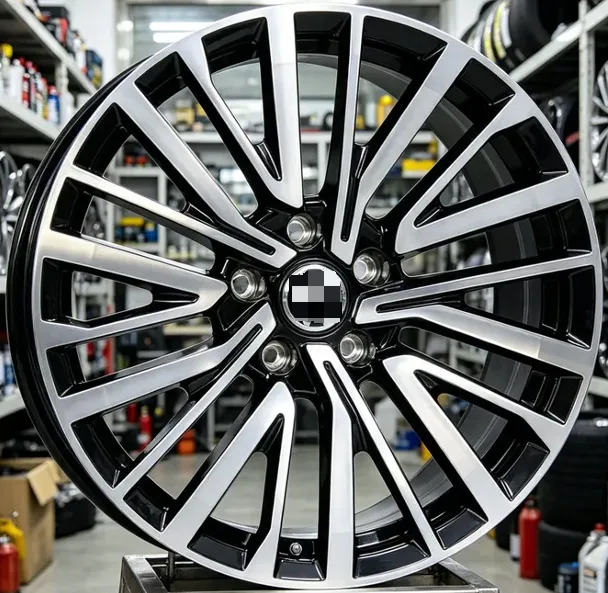

WD530 Cast Alloy Wheel
WD530 is a cast alloy wheel (rim) in 2 finishes: Gloss Black (Full Paint) and Gloss Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–18 inch: 2 sizes (17x7, 18x8), 1 bolt pattern (5x120), offset ET 50–55 mm and center bore 65.1 mm. Listed for Volkswagen. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Volkswagen.
No photo for this finish yet; showing another finish of WD530.
Finish
Wheel sizes: 17x7, 18x8
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 17x7 | 55 | 5x120 | 65.1 | Ball seat | Volkswagen | 31 | |
| 18x8 | 50 | 5x120 | 65.1 | Ball seat | Volkswagen | 3 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7 is a 17 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD530 comes in ET 50–55; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 65.1 mm for WD530. A bore larger than the hub needs centering rings.
