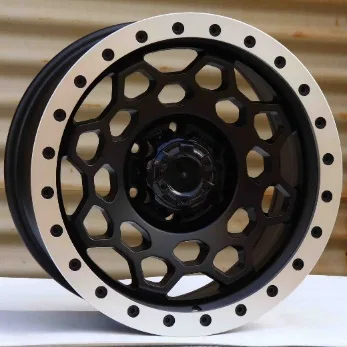

WD240 Cast Alloy Wheel
WD240 is a cast alloy wheel (rim) in 2 finishes: Matte Black Machined Lip and Gloss Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–18 inch: 2 sizes (17x8.5, 18x7), 3 bolt patterns (5x120, 6x135 and 6x139.7), offset ET 0–44.5 mm and center bore 64.1–110.1 mm. Listed for Denza. Feature: anti-slip groove. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 17x8.5
Bolt patterns (PCD): 6x135, 6x139.7
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 17x8.5 | 0 | 6x135 | 87.1 | Cone seat | Anti-slip groove | 1 | |
| 17x8.5 | 0 | 6x139.7 | 110.1 | Cone seat | Anti-slip groove | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x8.5 is a 17 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD240 comes in ET 0–44.5; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 64.1–110.1 mm for WD240. A bore larger than the hub needs centering rings.
