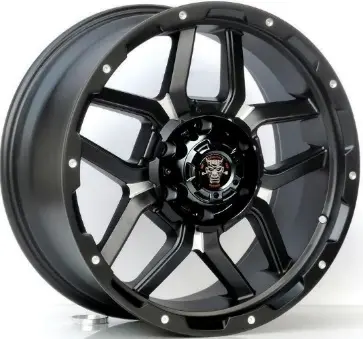

WD198 Cast Alloy Wheel in Matte Black + Milled Window and Rivets + Matte Clear Coat
WD198 is a cast alloy wheel (rim) in Matte Black + Milled Window and Rivets + Matte Clear Coat, one of 2 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20 inch: 1 size (20x9), 1 bolt pattern (6x139.7), offset ET 10 mm and center bore 110.1 mm. Feature: anti-slip groove. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 20x9
Bolt patterns (PCD): 6x139.7
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 20x9 | 10 | 6x139.7 | 110.1 | Cone seat | Anti-slip groove | 47 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x9 is a 20 inch wheel with a 9 inch wide rim. The J after a width, as in 9J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD198 comes in ET 10; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 6x139.7 is 6 bolts on a 139.7 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 110.1 mm for WD198. A bore larger than the hub needs centering rings.
