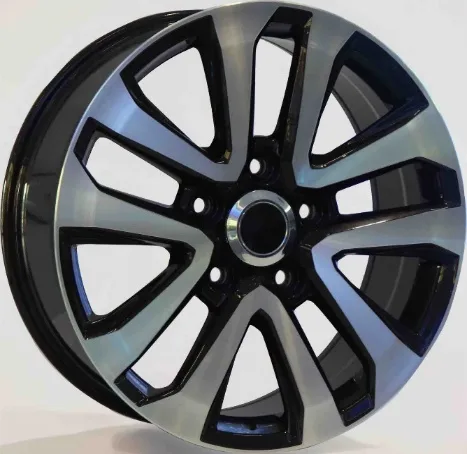

WD316 Cast Alloy Wheel
WD316 is a cast alloy wheel (rim) in 2 finishes: Gunmetal Machined Face and Gloss Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 18–20 inch: 2 sizes (18x8, 20x8.5), 1 bolt pattern (5x150), offset ET 58 mm and center bore 110.1 mm. Listed for Toyota. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Toyota.
No photo for this finish yet; showing another finish of WD316.
Finish
Wheel sizes: 18x8, 20x8.5
Bolt patterns (PCD): 5x150
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 18x8 | 58 | 5x150 | 110.1 | Flat seat | Toyota | 50+ | |
| 20x8.5 | 58 | 5x150 | 110.1 | Flat seat | Toyota | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x8 is a 18 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD316 comes in ET 58; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x150 is 5 bolts on a 150 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 110.1 mm for WD316. A bore larger than the hub needs centering rings.
