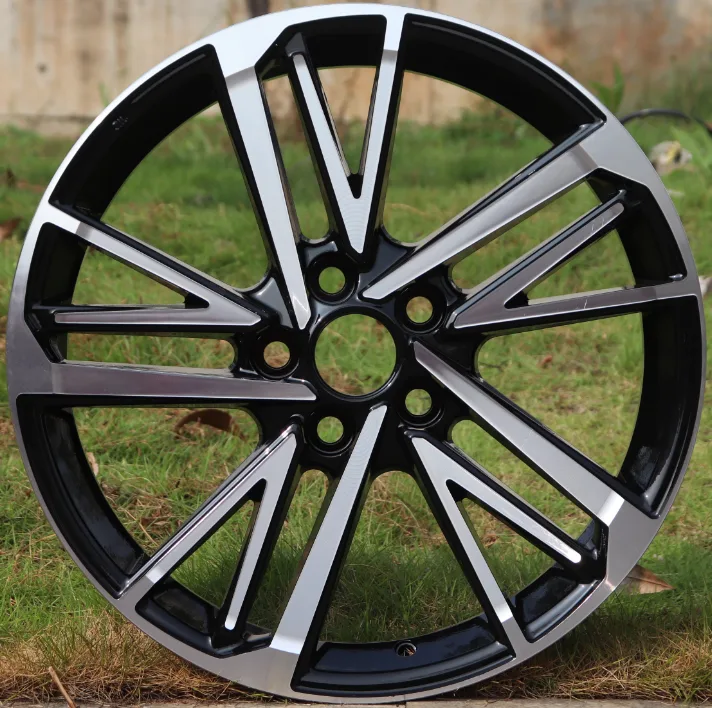

WD255 Cast Alloy Wheel
WD255 is a cast alloy wheel (rim) in 2 finishes: Gloss Black Machined Face and Matte Black + Milled Spokes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–20 inch: 6 sizes (17x7, 17x9, 18x7, 18x8, 19x8, 20x9), 3 bolt patterns (5x114.3, 6x114.3 and 6x139.7), offset ET 0–50 mm and center bore 60.1–110.1 mm. Listed for Toyota. Feature: anti-slip groove. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Toyota.
Finish
Wheel sizes: 17x7, 18x7, 18x8, 19x8
Bolt patterns (PCD): 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 17x7 | 45 | 5x114.3 | 60.1 | Flat seat | Toyota | 2 | |
| 18x7 | 40 | 5x114.3 | 60.1 | Flat seat | Toyota | 50+ | |
| 18x8 | 50 | 5x114.3 | 60.1 | Flat seat | Toyota | 50+ | |
| 19x8 | 50 | 5x114.3 | 60.1 | Flat seat | Toyota | 1 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7 is a 17 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD255 comes in ET 0–50; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 60.1–110.1 mm for WD255. A bore larger than the hub needs centering rings.
