WD299 Cast Alloy Wheel

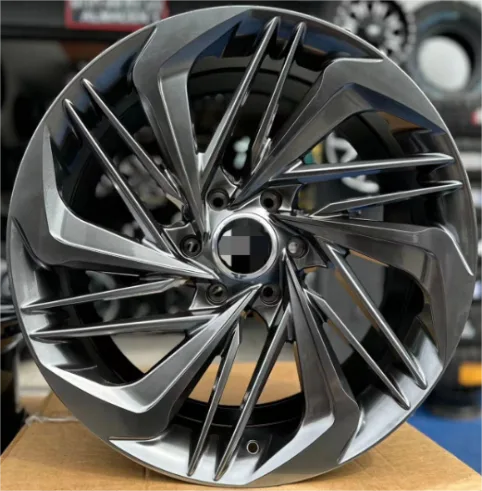

WD299 is a cast alloy wheel (rim) in 2 finishes: Gloss Black Machined Face and Hyper Black (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20 inch: 1 size (20x8.5), 1 bolt pattern (6x139.7), offset ET 18–25 mm and center bore 106.1 mm. Listed for Toyota. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Toyota.
No photo for this finish yet; showing another finish of WD299.
Finish
Wheel sizes: 20x8.5
Bolt patterns (PCD): 6x139.7
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 20x8.5 | 18 | 6x139.7 | 106.1 | Flat seat | Toyota | ||
| 20x8.5 | 25 | 6x139.7 | 106.1 | Flat seat | Toyota | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x8.5 is a 20 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD299 comes in ET 18–25; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 6x139.7 is 6 bolts on a 139.7 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 106.1 mm for WD299. A bore larger than the hub needs centering rings.
