WD224 Cast Alloy Wheel

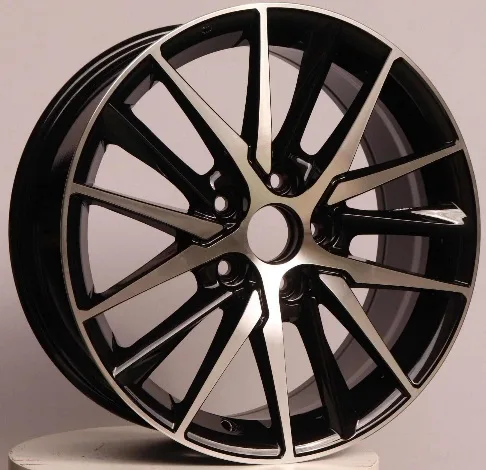

WD224 is a cast alloy wheel (rim) in 2 finishes: Gloss Black Machined Face and Matte Black Machined Lip + Matte Black Rivets. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–19 inch: 4 sizes (17x7, 17x8.5, 18x8, 19x8), 3 bolt patterns (5x114.3, 5x100 and 6x139.7), offset ET 0–50 mm and center bore 54.1–110.1 mm. Listed for Toyota. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Toyota.
Finish
Wheel sizes: 17x7, 18x8, 19x8
Bolt patterns (PCD): 5x100, 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 17x7 | 40 | 5x100 | 54.1 | Flat seat | Toyota | 50+ | |
| 17x7 | 43 | 5x114.3 | 60.1 | Flat seat | Toyota | ||
| 18x8 | 50 | 5x114.3 | 60.1 | Flat seat | Toyota | ||
| 19x8 | 40 | 5x114.3 | 60.1 | Flat seat | Toyota | 5 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7 is a 17 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD224 comes in ET 0–50; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 54.1–110.1 mm for WD224. A bore larger than the hub needs centering rings.
