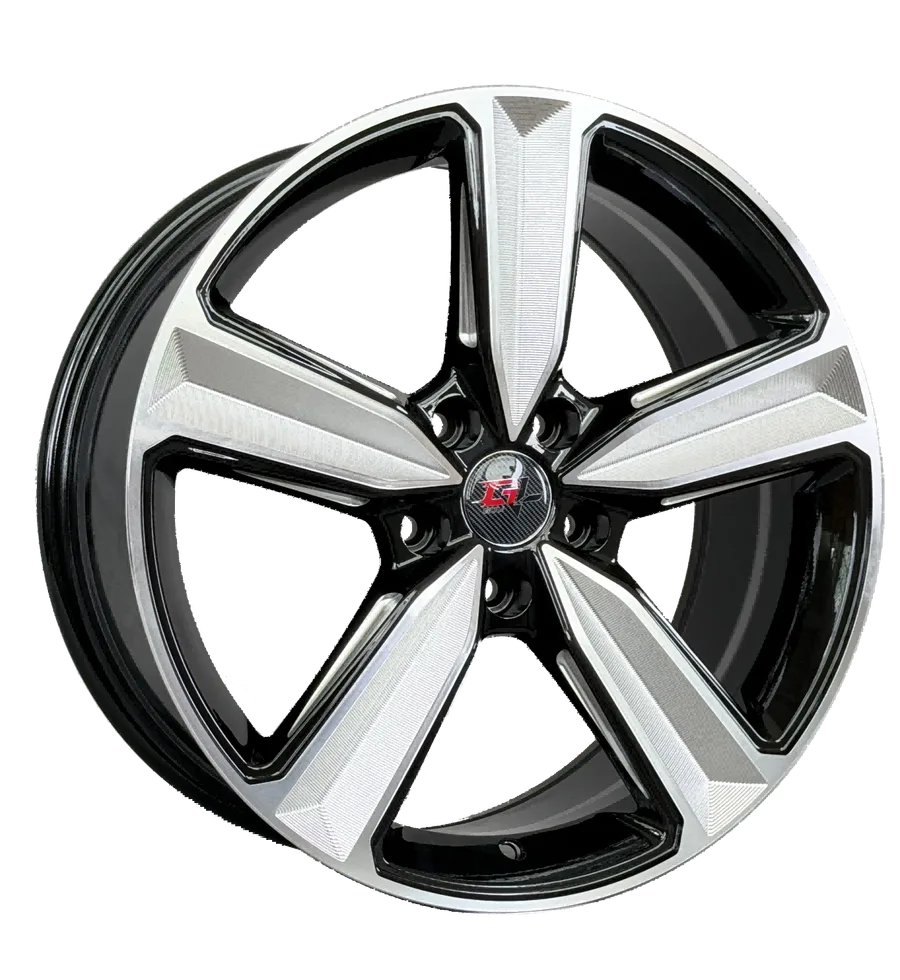

WD057 Cast Alloy Wheel
WD057 is a cast alloy wheel (rim) in 1 finish: Black Machined Face + Milled Spoke Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–21 inch: 6 sizes (17x7.5, 18x8.0, 18x8, 19x8.5, 20x9, 21x9), 3 bolt patterns (5x112, 5x114.3 and 5x108), offset ET 30–38 mm and center bore 57.1–73.1 mm. Listed for Audi. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Audi.
Finish
Wheel sizes: 17x7.5, 18x8.0, 18x8, 19x8.5, 20x9, 21x9
Bolt patterns (PCD): 5x108, 5x112, 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 17x7.5 | 35 | 5x108 | 73.1 | Cone seat | 16 | ||
| 17x7.5 | 35 | 5x112 | 66.5 | 30 | |||
| 17x7.5 | 35 | 5x114.3 | 73.1 | Cone seat | 50+ | ||
| 17x7.5 | 38 | 5x112 | 57.1 | 2 | |||
| 18x8.0 | 35 | 5x108 | 73.1 | 50+ | |||
| 18x8 | 35 | 5x108 | 73.1 | Cone seat | 1 | ||
| 18x8 | 35 | 5x112 | 57.1 | 2 | |||
| 18x8.0 | 35 | 5x112 | 66.5 | 50+ | |||
| 18x8 | 35 | 5x112 | 66.5 | Ball seat | Audi | 50+ | |
| 18x8 | 35 | 5x114.3 | 73.1 | 1 | |||
| 18x8.0 | 35 | 5x114.3 | 73.1 | 50+ | |||
| 18x8.0 | 38 | 5x112 | 57.1 | 14 | |||
| 19x8.5 | 35 | 5x108 | 73.1 | Cone seat | |||
| 19x8.5 | 35 | 5x112 | 66.5 | Ball seat | Audi | 50+ | |
| 19x8.5 | 35 | 5x114.3 | 73.1 | Cone seat | 1 | ||
| 20x9 | 35 | 5x112 | 66.5 | Cone seat | Audi | 34 | |
| 20x9 | 35 | 5x114.3 | 73.1 | 2 | |||
| 21x9 | 30 | 5x112 | 66.5 | Cone seat | Audi | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7.5 is a 17 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD057 comes in ET 30–38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 57.1–73.1 mm for WD057. A bore larger than the hub needs centering rings.
