WD002 Cast Alloy Wheel

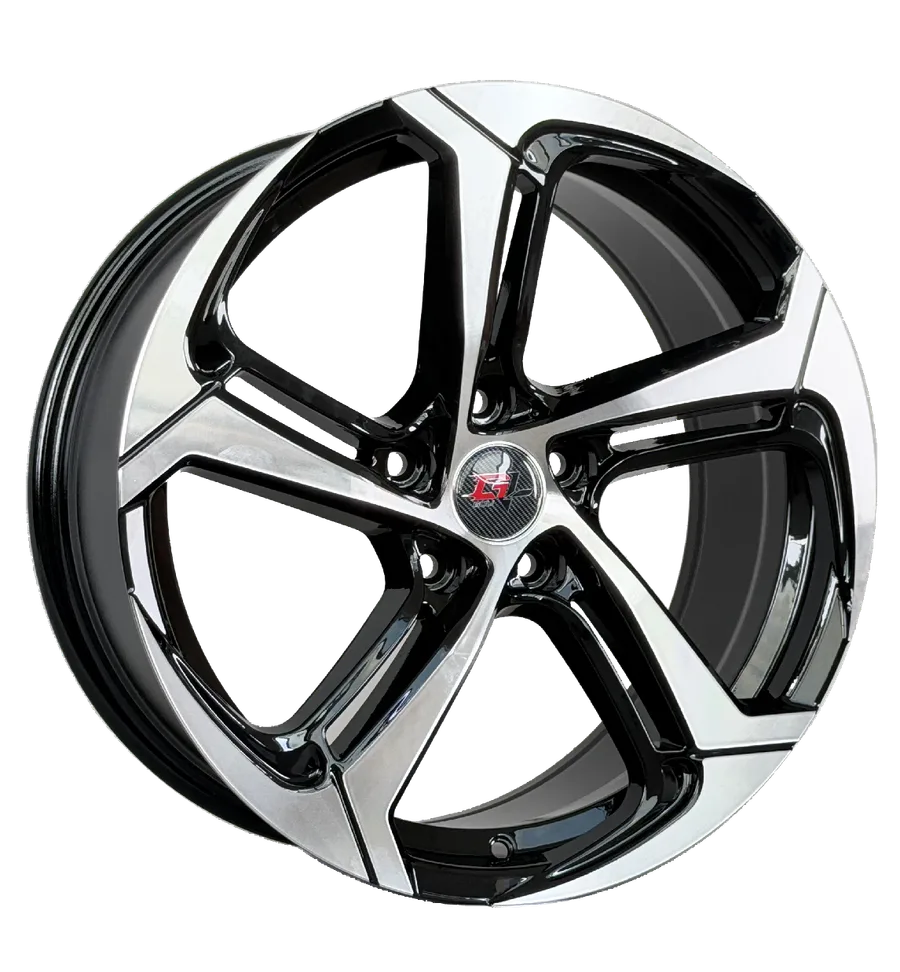

WD002 is a cast alloy wheel (rim) in 2 finishes: Gloss Black Machined Face and Matte Black Machined Face. It is an aftermarket design. It comes in 14–18 inch: 5 sizes (14x5.5, 15x6.5, 16x7, 17x7.5, 18x8), 6 bolt patterns (5x100, 5x114.3, 5x108, 5x112, 4x100 and 5x120), offset ET 30–35 mm and center bore 66.45–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 14x5.5, 15x6.5, 16x7, 17x7.5, 18x8
Bolt patterns (PCD): 4x100, 5x100, 5x114.3, 5x108, 5x112, 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 14x5.5 | 30 | 4x100 | 67.1 | 1 | ||
| 14x5.5 | 30 | 5x100 | 73.1 | 50+ | ||
| 14x5.5 | 35 | 5x100 | 73.1 | 2 | ||
| 15x6.5 | 35 | 4x100 | 67.1 | 2 | ||
| 15x6.5 | 35 | 5x100 | 73.1 | 2 | ||
| 15x6.5 | 35 | 5x114.3 | 73.1 | 8 | ||
| 16x7 | 35 | 5x100 | 73.1 | 7 | ||
| 16x7 | 35 | 5x114.3 | 73.1 | 26 | ||
| 17x7.5 | 35 | 5x108 | 73.1 | 24 | ||
| 17x7.5 | 35 | 5x112 | 66.45 | 50+ | ||
| 17x7.5 | 35 | 5x114.3 | 73.1 | 7 | ||
| 18x8 | 35 | 5x108 | 73.1 | 18 | ||
| 18x8 | 35 | 5x112 | 66.45 | 50+ | ||
| 18x8 | 35 | 5x114.3 | 73.1 | 50+ | ||
| 18x8 | 35 | 5x120 | 72.56 | 5 | ||
| 18x8 | 35 | 5x120 | 72.56 | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 14x5.5 is a 14 inch wheel with a 5.5 inch wide rim. The J after a width, as in 5.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD002 comes in ET 30–35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x100 is 5 bolts on a 100 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–73.1 mm for WD002. A bore larger than the hub needs centering rings.
