HDX057 Cast Alloy Wheel

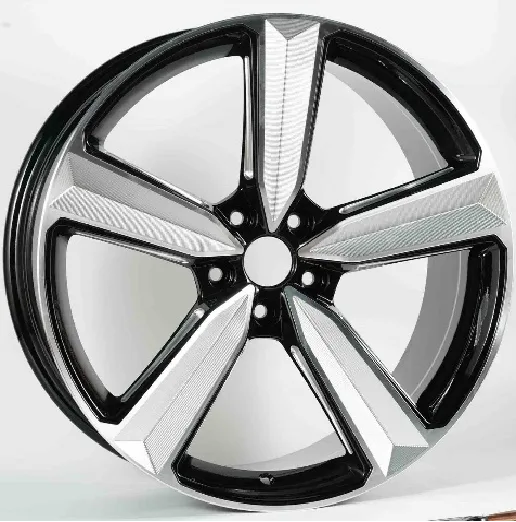

HDX057 is a cast alloy wheel (rim) in 1 finish: Black Machined Face + Milled Spoke Face. It is an aftermarket design. It comes in 18 inch: 2 sizes (18x8, 18x80), 3 bolt patterns (5x112, 5x108 and 5x114.3), offset ET 35–38 mm and center bore 57.1–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 18x8, 18x80
Bolt patterns (PCD): 5x114.3, 5x112, 5x108
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 18x8 | 35 | 5x114.3 | 73.1 | Ball seat | 50+ | |
| 18x8 | 38 | 5x112 | 57.1 | Ball seat | 50+ | |
| 18x80 | 35 | 5x108 | 73.1 | Ball seat | 50+ | |
| 18x80 | 35 | 5x112 | 66.5 | Ball seat | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x8 is a 18 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. HDX057 comes in ET 35–38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 57.1–73.1 mm for HDX057. A bore larger than the hub needs centering rings.
