WD133 Cast Alloy Wheel

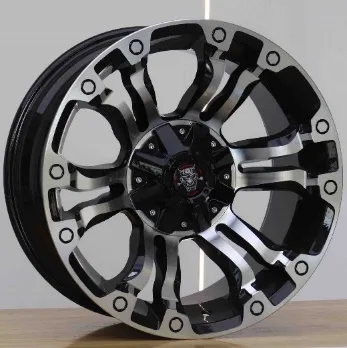

WD133 is a cast alloy wheel (rim) in 3 finishes: Gloss Black Machined Face, Matte Black (Full Paint) and Gunmetal Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 16–22 inch: 7 sizes (16x8, 18x8, 18x9, 19x8.5, 20x9, 21x9.5 and more), 2 bolt patterns (5x112 and 6x139.7), offset ET 0–35 mm and center bore 66.5–110.1 mm. Listed for Audi. Feature: anti-slip groove. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Audi.
Finish
Wheel sizes: 16x8, 18x8, 18x9, 19x8.5, 20x9, 21x9.5, 22x9.5
Bolt patterns (PCD): 6x139.7, 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 16x8 | 0 | 6x139.7 | 110.1 | Cone seat | Anti-slip groove | 3 | |
| 18x8 | 35 | 5x112 | 66.5 | Ball seat | Audi | 50+ | |
| 18x9 | 0 | 6x139.7 | 110.1 | Cone seat | Anti-slip groove | 50+ | |
| 19x8.5 | 35 | 5x112 | 66.5 | Ball seat | Audi | 50+ | |
| 20x9 | 35 | 5x112 | 66.5 | Ball seat | Audi | 19 | |
| 21x9.5 | 28 | 5x112 | 66.5 | Ball seat | Audi | 38 | |
| 22x9.5 | 28 | 5x112 | 66.5 | Ball seat | Audi | 41 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 16x8 is a 16 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD133 comes in ET 0–35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.5–110.1 mm for WD133. A bore larger than the hub needs centering rings.
