WD045 Cast Alloy Wheel

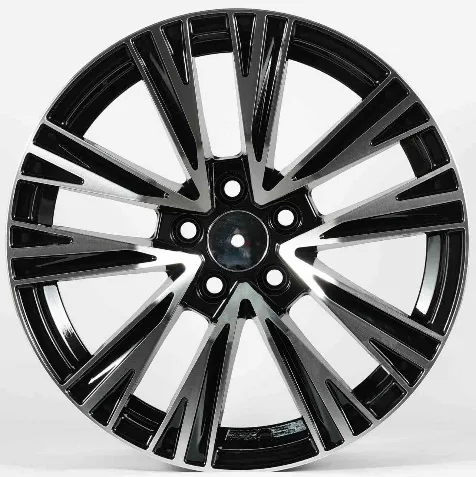

WD045 is a cast alloy wheel (rim) in 2 finishes: Gloss Black Machined Face and Gunmetal Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–20 inch: 4 sizes (17x7.5, 18x8, 19x8.5, 20x9), 2 bolt patterns (5x112 and 5x114.3), offset ET 35 mm and center bore 66.45–73.1 mm. Listed for Audi. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Audi.
Finish
Wheel sizes: 17x7.5, 18x8, 19x8.5, 20x9
Bolt patterns (PCD): 5x112, 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 17x7.5 | 35 | 5x112 | 66.5 | Ball seat | Audi | 50+ | |
| 17x7.5 | 35 | 5x114.3 | 73.1 | Cone seat | 36 | ||
| 18x8 | 35 | 5x112 | 66.5 | Ball seat | Audi | 50+ | |
| 19x8.5 | 35 | 5x112 | 66.45 | Ball seat | Audi | 27 | |
| 20x9 | 35 | 5x112 | 66.45 | Ball seat | Audi | 20 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7.5 is a 17 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD045 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–73.1 mm for WD045. A bore larger than the hub needs centering rings.
