WD0559 Forged Alloy Wheel
WD0559 is a forged alloy wheel (rim) in 5 finishes. It is an aftermarket design. It comes in 18–20 inch: 8 sizes (18x7.5, 18x8, 18x8.5, 19x8.5, 19x9.5, 20x8.5 and more), 4 bolt patterns (5x112, 5x114.3, 5x120 and 5x108), offset ET 30–45 mm and center bore 66.45–73.1 mm. Listed for Mercedes-Benz (C-Class). Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.

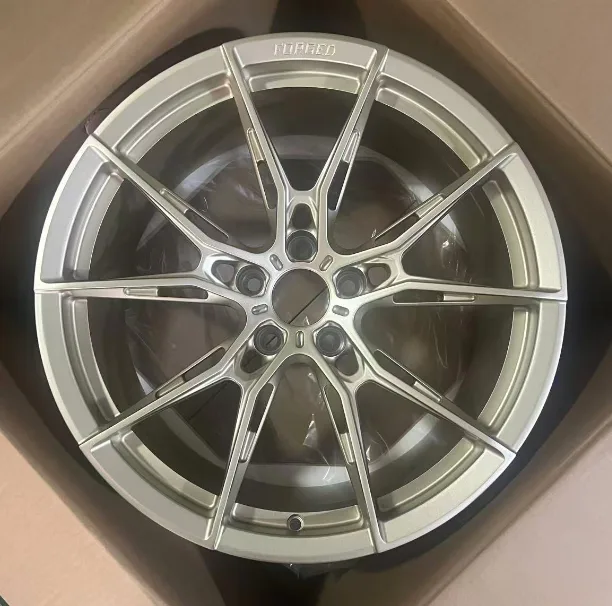

No photo for this finish yet; showing another finish of WD0559.
Finish
Matte Champagne GoldMatte Black (Full Paint)Brushed Aluminium (Natural)Gloss Black (Full Paint)Matte Black (Full Paint)
Wheel sizes: 18x7.5, 18x8, 18x8.5, 19x8.5, 19x9.5, 20x8.5, 20x9, 20x9.5
Bolt patterns (PCD): 5x112, 5x114.3, 5x120, 5x108
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|
| 18x7.5 | 35 | 5x112 | 66.45 | 15*31*R14.1 | 750 | 9.09 | Mercedes-Benz C-Class | 0 | |
| 18x8 | 38 | 5x112 | 66.45 | 15*32*R12.8 | 750 | 9.43 | 2 | ||
| 18x8 | 38 | 5x114.3 | 73.1 | 15*32.5*60 | 750 | 9.25 | 0 | ||
| 18x8.5 | 45 | 5x112 | 66.45 | 15*31*R14.1 | 750 | 9.5 | 2 | ||
| 19x8.5 | 30 | 5x112 | 66.45 | 15*32.5*60 | 750 | 10.17 | 7 | ||
| 19x8.5 | 30 | 5x120 | 72.56 | 15*32.5*60 | 850 | 10.76 | 0 | ||
| 19x8.5 | 35 | 5x108 | 73.1 | 15*32.5*60 | 850 | 10.44 | 0 | ||
| 19x8.5 | 38 | 5x114.3 | 73.1 | 15*32.5*60 | 750 | 11.25 | 2 | ||
| 19x9.5 | 35 | 5x112 | 66.45 | 15*32.5*60 | 750 | 10.17 | 7 | ||
| 19x9.5 | 35 | 5x120 | 72.56 | 15*32.5*60 | 850 | 10.89 | 0 | ||
| 19x9.5 | 38 | 5x114.3 | 73.1 | 15*32.5*60 | 750 | 10.78 | 4 | ||
| 20x8.5 | 30 | 5x112 | 66.45 | 15*32.5*60 | 800 | 11.16 | 2 | ||
| 20x8.5 | 30 | 5x120 | 72.56 | 15*32.5*60 | 850 | 11.45 | 16 | ||
| 20x8.5 | 35 | 5x108 | 73.1 | 15*32.5*60 | 850 | 10.88 | 0 | ||
| 20x8.5 | 35 | 5x114.3 | 73.1 | 15*32.5*60 | 800 | 10.78 | 8 | ||
| 20x9 | 30 | 5x112 | 66.45 | 3 | |||||
| 20x9.5 | 35 | 5x112 | 66.45 | 15*32.5*60 | 800 | 11.7 | 2 | ||
| 20x9.5 | 35 | 5x120 | 72.56 | 15*32.5*60 | 850 | 11.92 | 2 | ||
| 20x9.5 | 38 | 5x114.3 | 73.1 | 15*32.5*60 | 800 | 11.38 | 4 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x7.5 is a 18 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0559 comes in ET 30–45; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–73.1 mm for WD0559. A bore larger than the hub needs centering rings.
