JX0559 Forged Alloy Wheel

Name: JX0559 Alloy Wheel
Brand: Sky Flux
SKU: JX0559

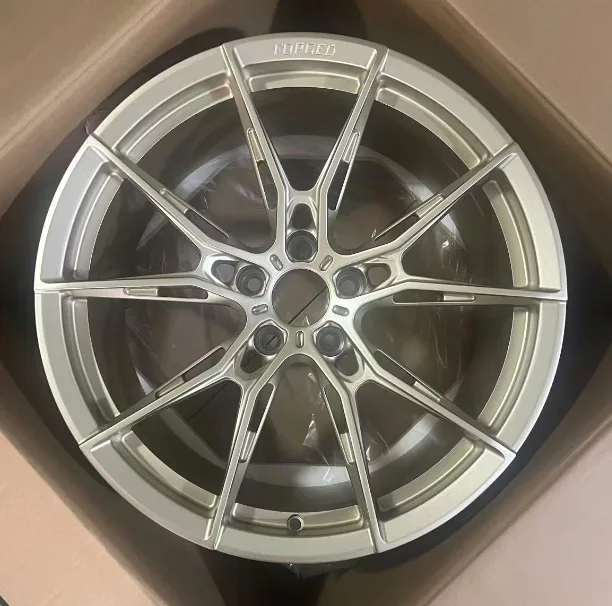

JX0559 is a forged alloy wheel (rim) in 1 finish: Brushed Aluminium (Natural). It is an aftermarket design. It comes in 18–21 inch: 9 sizes (18x7.5, 18x8, 18x8.5, 19x8.5, 19x9.5, 20x8.5 and more), 4 bolt patterns (5x112, 5x120, 5x114.3 and 5x108), offset ET 30–45 mm and center bore 66.45–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.

Finish

Brushed Aluminium (Natural)

Wheel sizes: 18x7.5, 18x8, 18x8.5, 19x8.5, 19x9.5, 20x8.5, 20x9, 20x9.5, 21x9

Bolt patterns (PCD): 5x112, 5x120, 5x108, 5x114.3

Sizes and specifications of JX0559 in Brushed Aluminium (Natural)
Size (D x J)	Offset (ET)	Bolt pattern (PCD)	Center bore (CB)	Stock
18x7.5	35	5x112	66.45
18x8	38	5x112	66.45
18x8.5	45	5x112	66.45
19x8.5	30	5x112	66.45	2
19x8.5	30	5x120	72.56	2
19x8.5	35	5x108	73.1
19x8.5	38	5x114.3	73.1	6
19x9.5	35	5x112	66.45	12
19x9.5	35	5x120	72.56	2
19x9.5	38	5x114.3	73.1	2
20x8.5	30	5x112	66.45	12
20x8.5	30	5x120	72.56	6
20x8.5	35	5x108	73.1
20x8.5	35	5x114.3	73.1
20x9	30	5x112	66.45	16
20x9.5	35	5x112	66.45	12
20x9.5	35	5x120	72.56	6
21x9	30	5x112	66.45	8

What these numbers mean

Size (D x J): Diameter in inches, then rim width in inches: 18x7.5 is a 18 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
Offset (ET): The distance in mm from the wheel's centerline to its mounting face. JX0559 comes in ET 30–45; a lower ET sits the wheel further out.
Bolt pattern (PCD): The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
Center bore (CB): The central hole that sits over the vehicle's hub: 66.45–73.1 mm for JX0559. A bore larger than the hub needs centering rings.
