WD0006 Forged Alloy Wheel

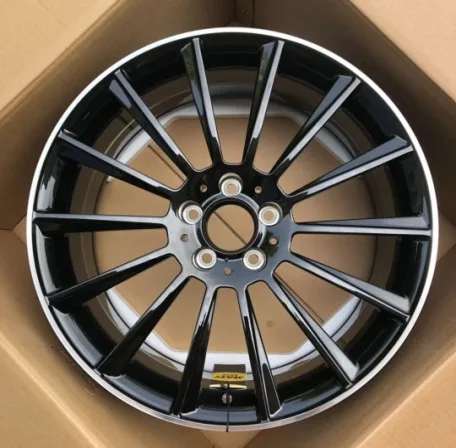

WD0006 is a forged alloy wheel (rim) in 3 finishes: Gunmetal Machined Face, Gloss Black Machined Face and Gloss Black (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–22 inch: 11 sizes (17x7.5, 18x8, 18x8.5, 19x8.5, 19x9.5, 20x8.5 and more), 1 bolt pattern (5x112), offset ET 34–47 mm and center bore 66.45–66.6 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.
Finish
Wheel sizes: 17x7.5, 18x8, 18x8.5, 19x8.5, 19x9.5, 20x8.5, 20x9.5, 21x9, 21x10, 22x10, 22x11
Bolt patterns (PCD): 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|
| 17x7.5 | 38 | 5x112 | 66.45 | 15*31*R14.1 | 850 | 8.8 | Mercedes-Benz | 2 | |
| 18x8 | 40 | 5x112 | 66.45 | 15*31*R14.1 | 850 | 10.1 | Mercedes-Benz | 12 | |
| 18x8.5 | 36 | 5x112 | 66.45 | 15*31*R14.1L | 850 | 9.7 | Mercedes-Benz | 2 | |
| 19x8.5 | 36 | 5x112 | 66.45 | 16*31*R14.1L | 850 | 10.7 | Mercedes-Benz | 30 | |
| 19x9.5 | 43 | 5x112 | 66.6 | Mercedes-Benz | 16 | ||||
| 19x9.5 | 43.5 | 5x112 | 66.45 | 16*31*R14.1L | 850 | 10.9 | Mercedes-Benz | 48 | |
| 20x8.5 | 36 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 11.5 | Mercedes-Benz | 81 | |
| 20x9.5 | 43 | 5x112 | 66.6 | Mercedes-Benz | 7 | ||||
| 20x9.5 | 43.5 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 12.5 | Mercedes-Benz | 71 | |
| 21x9 | 34 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 13 | Mercedes-Benz | 3 | |
| 21x10 | 45 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 13.2 | Mercedes-Benz | 14 | |
| 22x10 | 43 | 5x112 | 66.56 | Mercedes-Benz | 0 | ||||
| 22x11 | 47 | 5x112 | 66.56 | Mercedes-Benz | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7.5 is a 17 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0006 comes in ET 34–47; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–66.6 mm for WD0006. A bore larger than the hub needs centering rings.
