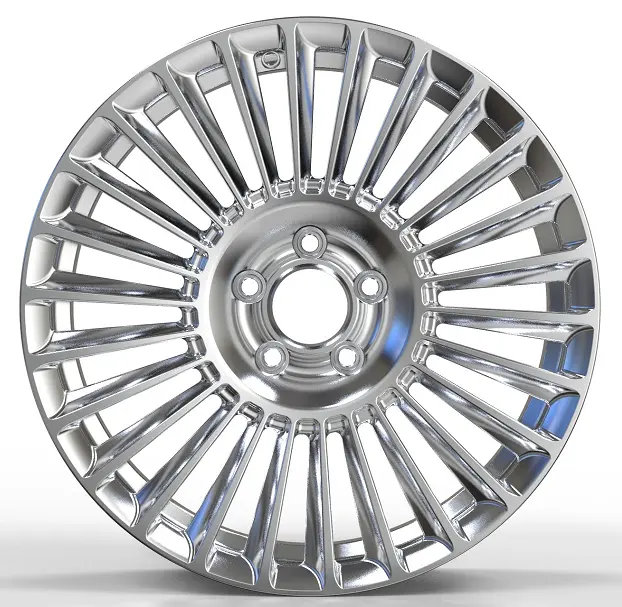

WD0124 Forged Alloy Wheel
WD0124 is a forged alloy wheel (rim) in 3 finishes: Polished, Polished + Brushed Rim and Gloss Black (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 16–22 inch: 6 sizes (16x7, 17x7.5, 18x8, 19x8.5, 21x9, 22x9), 4 bolt patterns (5x120, 5x112, 5x114.3 and 6x130), offset ET 35–38 mm and center bore 62.5–75 mm. Listed for Mercedes-Benz and Toyota (HiAce). Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz, Toyota.
Finish
Wheel sizes: 16x7, 17x7.5, 18x8, 19x8.5, 21x9, 22x9
Bolt patterns (PCD): 6x130, 5x112, 5x114.3, 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|---|
| 16x7 | 35 | 6x130 | 75 | 20*35 depth 18 | 1200 | 9.7 | Toyota HiAce | 3 | ||
| 17x7.5 | 38 | 5x112 | 66.45 | 15*31*R14.1 | 950 | 9.8 | Mercedes-Benz | 2 | ||
| 18x8 | 38 | 5x112 | 66.45 | 15*31*R14.1 | 950 | 11 | Mercedes-Benz | |||
| 19x8.5 | 38 | 5x114.3 | 67.1 | Cone seat | 15*32*60 | 950 | 12.3 | |||
| 21x9 | 38 | 5x120 | 62.5 | 950 | ||||||
| 22x9 | 38 | 5x120 | 62.5 | 950 | 12 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 16x7 is a 16 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0124 comes in ET 35–38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 62.5–75 mm for WD0124. A bore larger than the hub needs centering rings.
