WD049 Cast Alloy Wheel in Matte Black (Full Paint)

Name: WD049 Alloy Wheel
Brand: Sky Flux
SKU: WD049

WD049 is a cast alloy wheel (rim) in Matte Black (Full Paint), one of 2 finishes. It is an aftermarket design. It comes in 15–19 inch: 5 sizes (15x6, 16x6.5, 17x7.5, 18x8, 19x8.5), 6 bolt patterns (5x114.3, 5x108, 5x112, 4x100, 5x100 and 5x120), offset ET 35 mm and center bore 57.1–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.

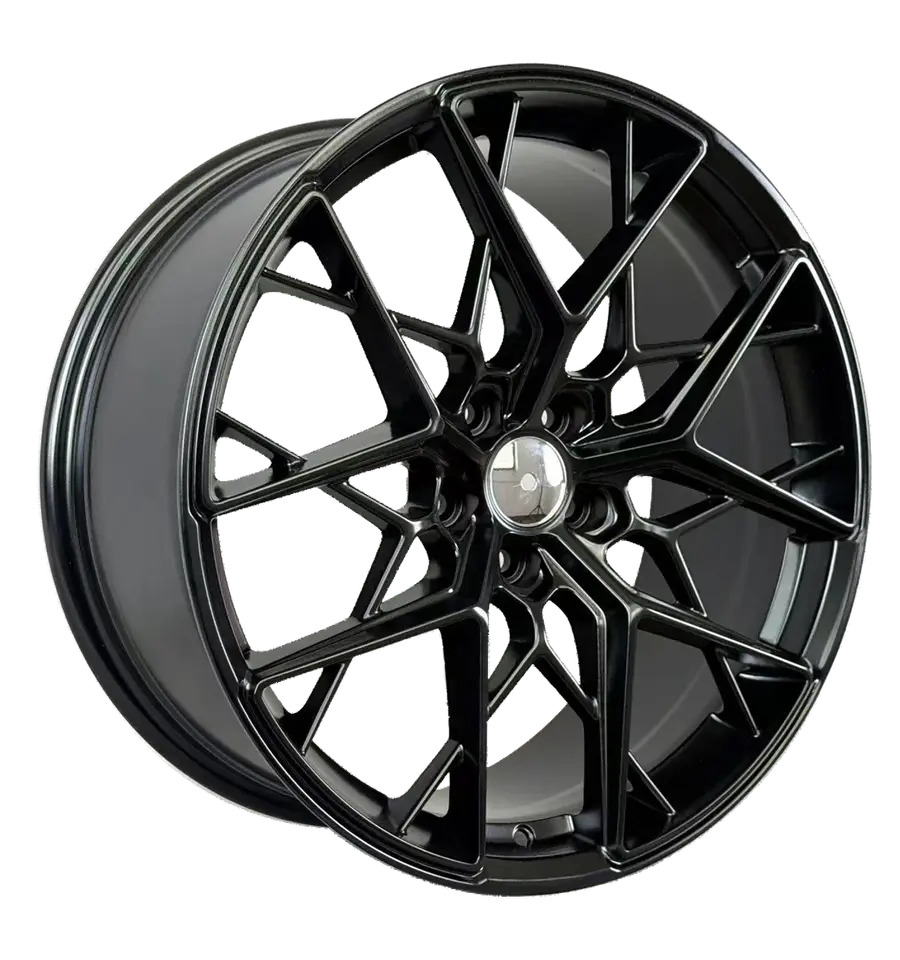

WD049 alloy wheel rim – Matte Black (Full Paint)

WD049 alloy wheel – Hyper Black (Full Paint), photo 1

WD049 alloy wheel – Matte Black (Full Paint), photo 2

Finish

Hyper Black (Full Paint)Matte Black (Full Paint)

Wheel sizes: 15x6, 16x6.5, 17x7.5, 18x8, 19x8.5

Bolt patterns (PCD): 4x100, 5x100, 5x114.3, 5x108, 5x112, 5x120

Sizes and specifications of WD049 in Matte Black (Full Paint)
Size (D x J)	Offset (ET)	Bolt pattern (PCD)	Center bore (CB)	Stock
15x6	35	4x100	67.1	50+
15x6	35	5x100	57.1	50+
15x6	35	5x114.3	73.1	50+
16x6.5	35	4x100	67.1	50+
16x6.5	35	5x100	57.1	50+
16x6.5	35	5x114.3	73.1	1
17x7.5	35	5x108	73.1	6
17x7.5	35	5x112	66.45	50+
17x7.5	35	5x114.3	73.1	2
18x8	35	5x108	73.1	16
18x8	35	5x112	66.45	49
18x8	35	5x114.3	73.1	3
18x8	35	5x120	72.56	3
19x8.5	35	5x108	73.1	40
19x8.5	35	5x112	66.45	16

What these numbers mean

Size (D x J): Diameter in inches, then rim width in inches: 15x6 is a 15 inch wheel with a 6 inch wide rim. The J after a width, as in 6J, names the rim flange profile.
Offset (ET): The distance in mm from the wheel's centerline to its mounting face. WD049 comes in ET 35; a lower ET sits the wheel further out.
Bolt pattern (PCD): The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
Center bore (CB): The central hole that sits over the vehicle's hub: 57.1–73.1 mm for WD049. A bore larger than the hub needs centering rings.
