WD047 Cast Alloy Wheel

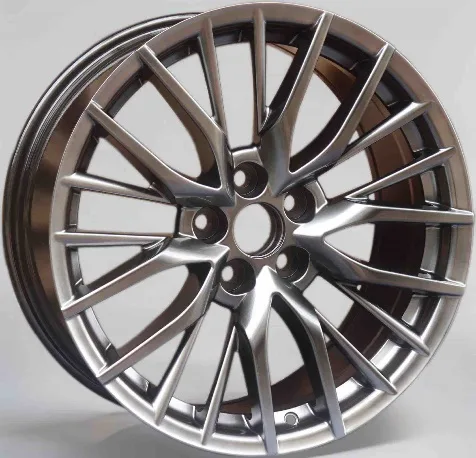

WD047 is a cast alloy wheel (rim) in 3 finishes: Hyper Black (Full Paint), Gloss Black (Full Paint) and Black Chrome Plating. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–20 inch: 4 sizes (17x7.5, 18x8, 19x8, 20x8), 1 bolt pattern (5x114.3), offset ET 35–42 mm and center bore 60.1 mm. Listed for Toyota. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Toyota.
No photo for this finish yet; showing another finish of WD047.
Finish
Wheel sizes: 17x7.5, 18x8, 19x8, 20x8
Bolt patterns (PCD): 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 17x7.5 | 35 | 5x114.3 | 60.1 | Flat seat | Toyota | 50+ | |
| 18x8 | 35 | 5x114.3 | 60.1 | Flat seat | Toyota | 3 | |
| 19x8 | 42 | 5x114.3 | 60.1 | Flat seat | Toyota | ||
| 20x8 | 35 | 5x114.3 | 60.1 | Flat seat | Toyota |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7.5 is a 17 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD047 comes in ET 35–42; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 60.1 mm for WD047. A bore larger than the hub needs centering rings.
