REW038 Cast Alloy Wheel
REW038 is a cast alloy wheel (rim) in 2 finishes: Gloss Black Machined Face and White (Full Paint). It is an aftermarket design. It comes in 15–16 inch: 2 sizes (15x6.5, 16x7), 2 bolt patterns (10x100x112 and 8x100x114.3), offset ET 20–30 mm and center bore 57.1–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.

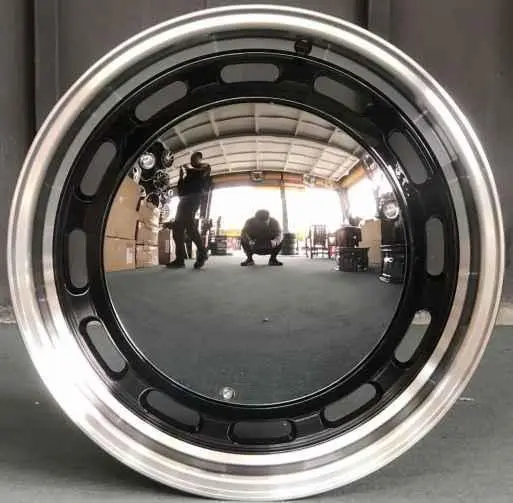

No photo for this finish yet; showing another finish of REW038.
Finish
Wheel sizes: 15x6.5, 16x7
Bolt patterns (PCD): 10x100x112, 8x100x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 15x6.5 | 20 | 10x100x112 | 57.1 | Ball seat | 0 | |
| 15x6.5 | 30 | 8x100x114.3 | 73.1 | Cone seat | 50+ | |
| 16x7 | 30 | 10x100x112 | 66.5 | Ball seat | 0 | |
| 16x7 | 30 | 8x100x114.3 | 73.1 | Cone seat | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 15x6.5 is a 15 inch wheel with a 6.5 inch wide rim. The J after a width, as in 6.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. REW038 comes in ET 20–30; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 10x100x112 is 10 bolts on a 100 or 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 57.1–73.1 mm for REW038. A bore larger than the hub needs centering rings.
