WD220 Cast Alloy Wheel
WD220 is a cast alloy wheel (rim) in 4 finishes: Matte Black (Full Paint), Candy Red + Matte Black Lip, Bronze + Matte Black Lip and Matte Black Machined Face + Matte Sun Gold + Matte Clear. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 16–19 inch: 4 sizes (16x8.5, 18x8, 18x9, 19x8.5), 5 bolt patterns (6x139.7, 5x112, 5x127, 5x139.7 and 6x114.3), offset ET -12–40 mm and center bore 57.1–110.1 mm. Listed for Volkswagen. Feature: anti-slip groove. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Volkswagen.

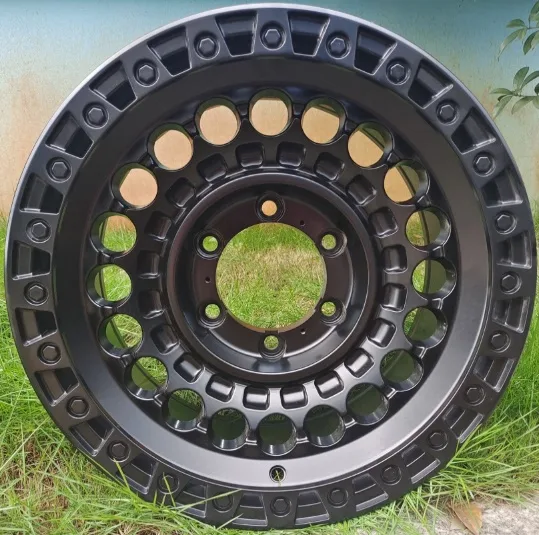

No photo for this finish yet; showing another finish of WD220.
Finish
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 16x8.5 | -12 | 5x139.7 | 110.1 | Cone seat | Anti-slip groove | 50+ | |
| 16x8.5 | 0 | 6x114.3 | 66.1 | Cone seat | Anti-slip groove | 2 | |
| 16x8.5 | 0 | 6x139.7 | 110.1 | Cone seat | Anti-slip groove | 11 | |
| 18x9 | -10 | 5x127 | 71.5 | Cone seat | Anti-slip groove | 2 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 16x8.5 is a 16 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD220 comes in ET -12–40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 6x139.7 is 6 bolts on a 139.7 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 57.1–110.1 mm for WD220. A bore larger than the hub needs centering rings.
