WD216 Cast Alloy Wheel
WD216 is a cast alloy wheel (rim) in 3 finishes: White (Full Paint), Matte Black (Full Paint) and Matte Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 15–18 inch: 4 sizes (15x6.5, 16x7, 17x9, 18x8), 4 bolt patterns (6x139.7, 8x100x114.3, 10x100x112 and 5x108), offset ET 0–55 mm and center bore 63.4–110.1 mm. Listed for Ford. Feature: anti-slip groove. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Ford.

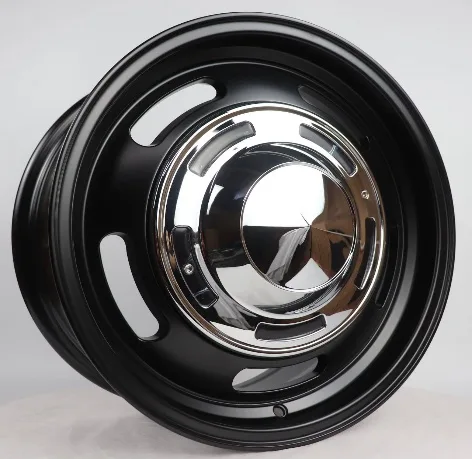

No photo for this finish yet; showing another finish of WD216.
Finish
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 15x6.5 | 20 | 8x100x114.3 | 73.1 | Cone seat | 50+ | ||
| 17x9 | 0 | 6x139.7 | 110.1 | Cone seat | Anti-slip groove | 45 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 15x6.5 is a 15 inch wheel with a 6.5 inch wide rim. The J after a width, as in 6.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD216 comes in ET 0–55; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 6x139.7 is 6 bolts on a 139.7 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 63.4–110.1 mm for WD216. A bore larger than the hub needs centering rings.
