RHX1155 Cast Alloy Wheel
RHX1155 is a cast alloy wheel (rim) in 3 finishes: Gloss Black Machined Lip + Gold Rivets, Silver Machined Lip + Gold Rivets and Gunmetal Machined Lip + Gold Rivets. It is an aftermarket design. It comes in 15–17 inch: 3 sizes (15x6.5, 16x7, 17x7.5), 3 bolt patterns (8x100x114.3, 10x100x112 and 10x108x114.3), offset ET 30 mm and center bore 57.1–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.

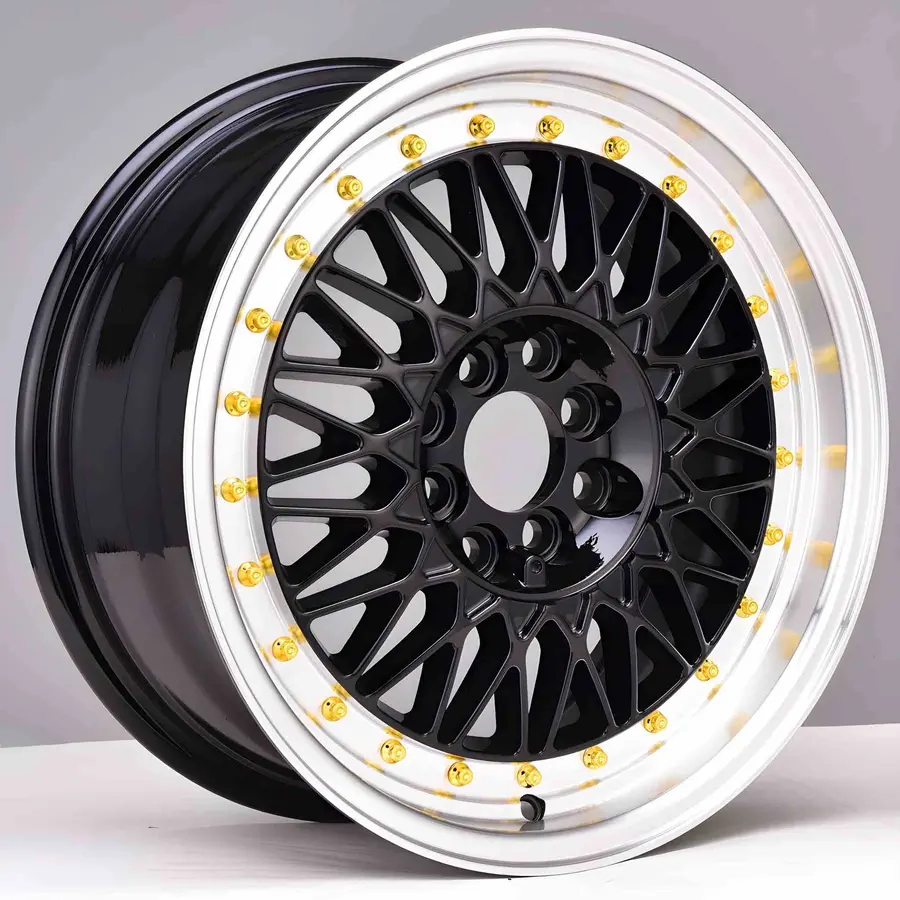

No photo for this finish yet; showing another finish of RHX1155.
Finish
Gloss Black Machined Lip + Gold RivetsSilver Machined Lip + Gold RivetsGunmetal Machined Lip + Gold Rivets
Wheel sizes: 15x6.5, 16x7, 17x7.5
Bolt patterns (PCD): 10x100x112, 8x100x114.3, 10x108x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 15x6.5 | 30 | 10x100x112 | 57.1 | Ball seat | 0 | |
| 15x6.5 | 30 | 8x100x114.3 | 73.1 | Cone seat | 0 | |
| 16x7 | 30 | 10x100x112 | 66.5 | Ball seat | 0 | |
| 16x7 | 30 | 10x108x114.3 | 73.1 | Cone seat | 0 | |
| 16x7 | 30 | 8x100x114.3 | 73.1 | Cone seat | 0 | |
| 17x7.5 | 30 | 10x100x112 | 66.5 | Ball seat | 0 | |
| 17x7.5 | 30 | 10x108x114.3 | 73.1 | Cone seat | 0 | |
| 17x7.5 | 30 | 8x100x114.3 | 73.1 | Cone seat | 3 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 15x6.5 is a 15 inch wheel with a 6.5 inch wide rim. The J after a width, as in 6.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. RHX1155 comes in ET 30; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 8x100x114.3 is 8 bolts on a 100 or 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 57.1–73.1 mm for RHX1155. A bore larger than the hub needs centering rings.
