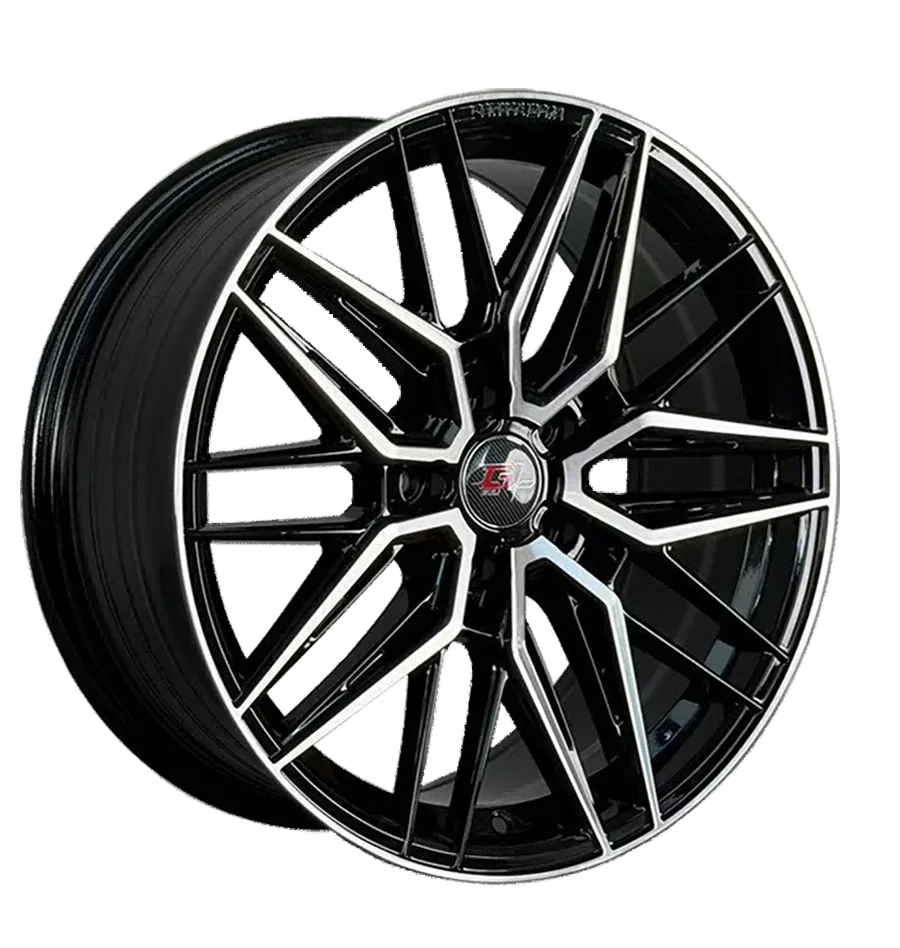

WD535 Cast Alloy Wheel in Gloss Black Machined Face
WD535 is a cast alloy wheel (rim) in Gloss Black Machined Face, one of 2 finishes. It is an aftermarket design. It comes in 18–20 inch: 3 sizes (18x8, 19x8.5, 20x8.5), 3 bolt patterns (5x112, 5x114.3 and 5x120), offset ET 35 mm and center bore 66.45–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 18x8, 19x8.5, 20x8.5
Bolt patterns (PCD): 5x112, 5x114.3, 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 18x8 | 35 | 5x112 | 66.45 | 37 | |
| 18x8 | 35 | 5x114.3 | 73.1 | 3 | |
| 18x8 | 35 | 5x120 | 72.56 | 21 | |
| 19x8.5 | 35 | 5x112 | 66.45 | 49 | |
| 19x8.5 | 35 | 5x114.3 | 73.1 | 50+ | |
| 20x8.5 | 35 | 5x112 | 66.45 | 11 | |
| 20x8.5 | 35 | 5x114.3 | 73.1 | 10 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x8 is a 18 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD535 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–73.1 mm for WD535. A bore larger than the hub needs centering rings.
