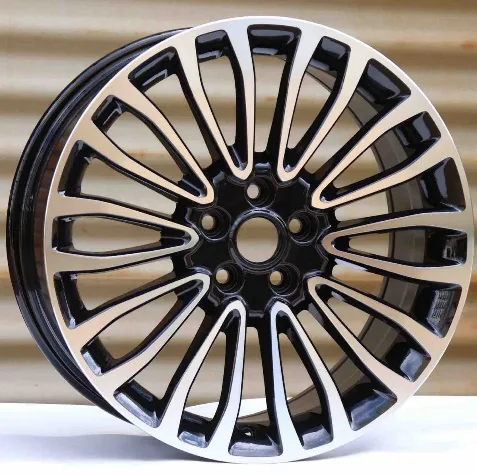

WD521 Cast Alloy Wheel
WD521 is a cast alloy wheel (rim) in 1 finish: Gunmetal Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 18 inch: 1 size (18x8), 1 bolt pattern (5x108), offset ET 55 mm and center bore 63.4 mm. Listed for Ford (Mondeo). Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Ford.
Finish
Wheel sizes: 18x8
Bolt patterns (PCD): 5x108
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 18x8 | 55 | 5x108 | 63.4 | Cone seat | Ford Mondeo | 2 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x8 is a 18 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD521 comes in ET 55; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x108 is 5 bolts on a 108 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 63.4 mm for WD521. A bore larger than the hub needs centering rings.
